Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)

Page 6
background image

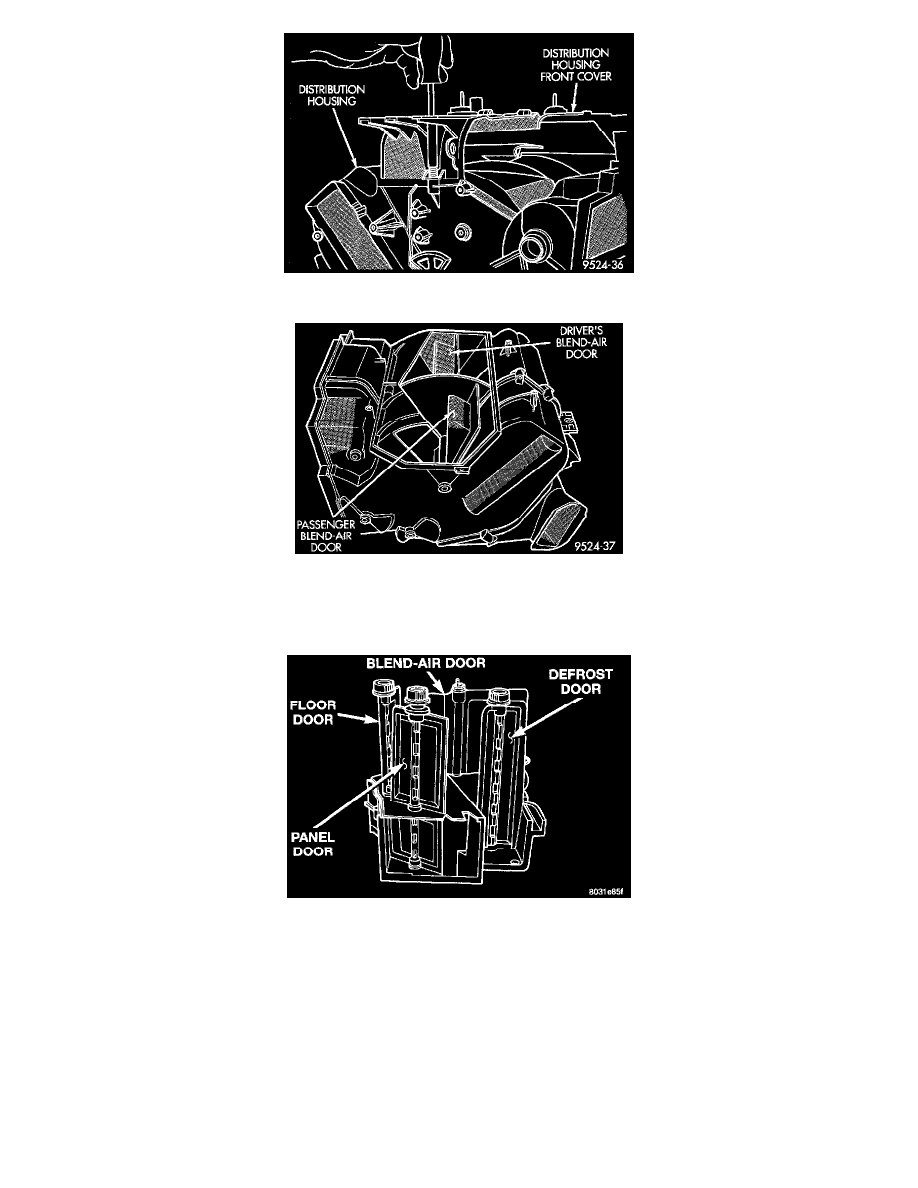

Front Cover

View Of Zone Control Doors

17. Remove distribution housing front cove.
18. Remove weather-strip at fresh-air vent.

Distribution Housing Halves

19. Separate housing halves.
