Evaporator Housing Disassembly and Assembly|Page 7266 > < Evaporator Housing Disassembly and Assembly|Page 7264

Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)

Page 3
background image

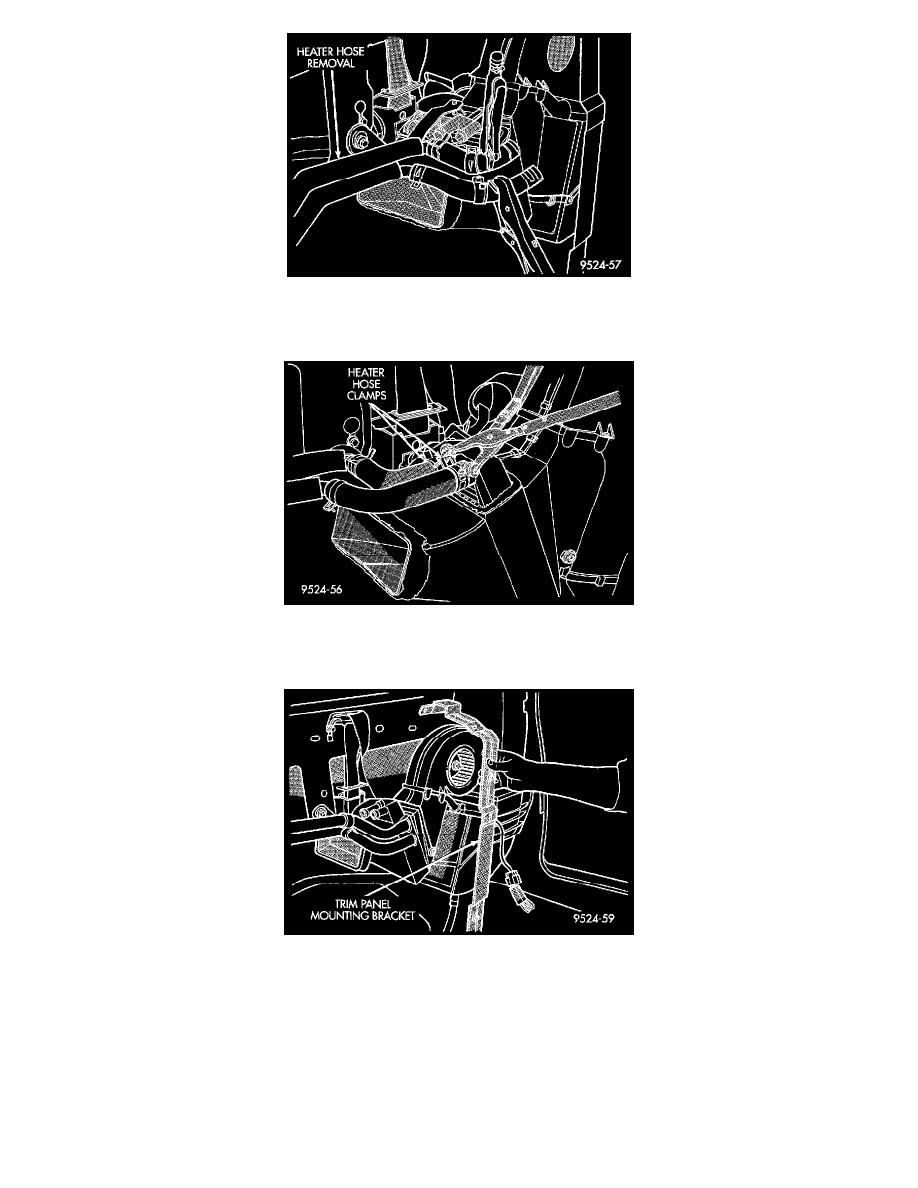

Heater Core Lines

8. Pinch off heater lines at heater core hookup.

Heater Hoses

9. Remove heater hoses at heater core.

Trim Panel Mounting Bracket

10. Remove quarter trim panel mounting bracket.
11. Remove blower motor wiring harness connector.

Evaporator Housing Disassembly and Assembly|Page 7266 > < Evaporator Housing Disassembly and Assembly|Page 7264
