Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)
Marker Lamp Bulb: Service and Repair
REMOVAL
1. Remove screw attaching side marker lamp to fascia.

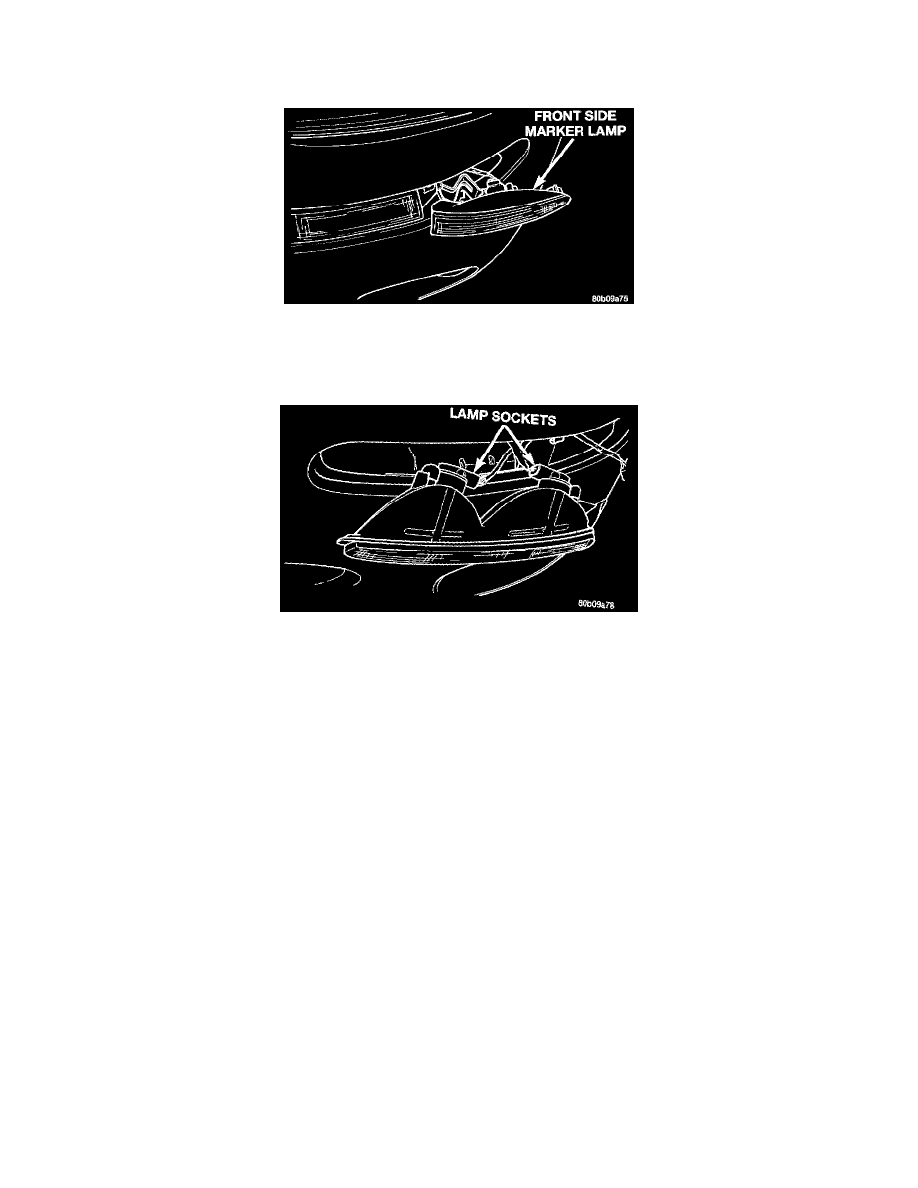

Front Side Marker Lamp Bulb
2. Remove housing by pulling rearward and away from fascia.
3. Rotate lamp socket counterclockwise one quarter turn.
Front Side Marker Lamp Sockets
4. Pull bulb socket from the rear of lamp.
5. Pull bulb from socket.
INSTALLATION
1. Insert bulb into socket.
2. Insert bulb socket into rear of housing.
3. Rotate park and turn signal socket clockwise one quarter turn.
4. Verify bulb operation.
5. Install screw attaching side marker lamp.
