Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)

Page 1
background image

Transmission Position Switch/Sensor: Locations
4 Speed A/T

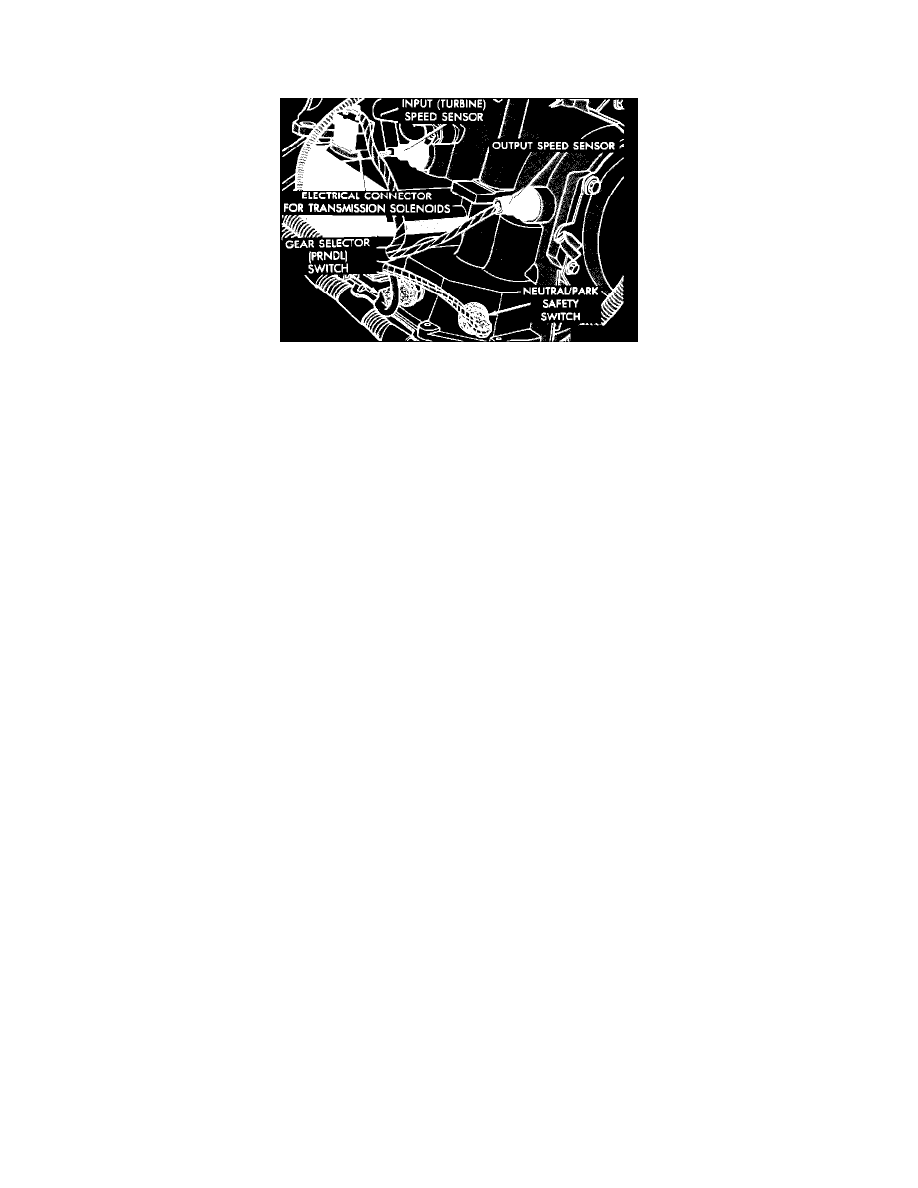

Automatic Transmission Electrical Connections (4 Speed)

Switch mounted in transaxle, (automatic only).
