Chrysler Workshop Service and Repair Manuals > Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998) > Starting and Charging | Power and Ground Distribution | Power Distribution Center <--> [Electrical Accessory Panel] | Component Information | Diagrams | Diagram Information and Instructions | Page 6203

Diagram Information and Instructions|Page 6204 > < Diagram Information and Instructions|Page 6202

Page 1

background image

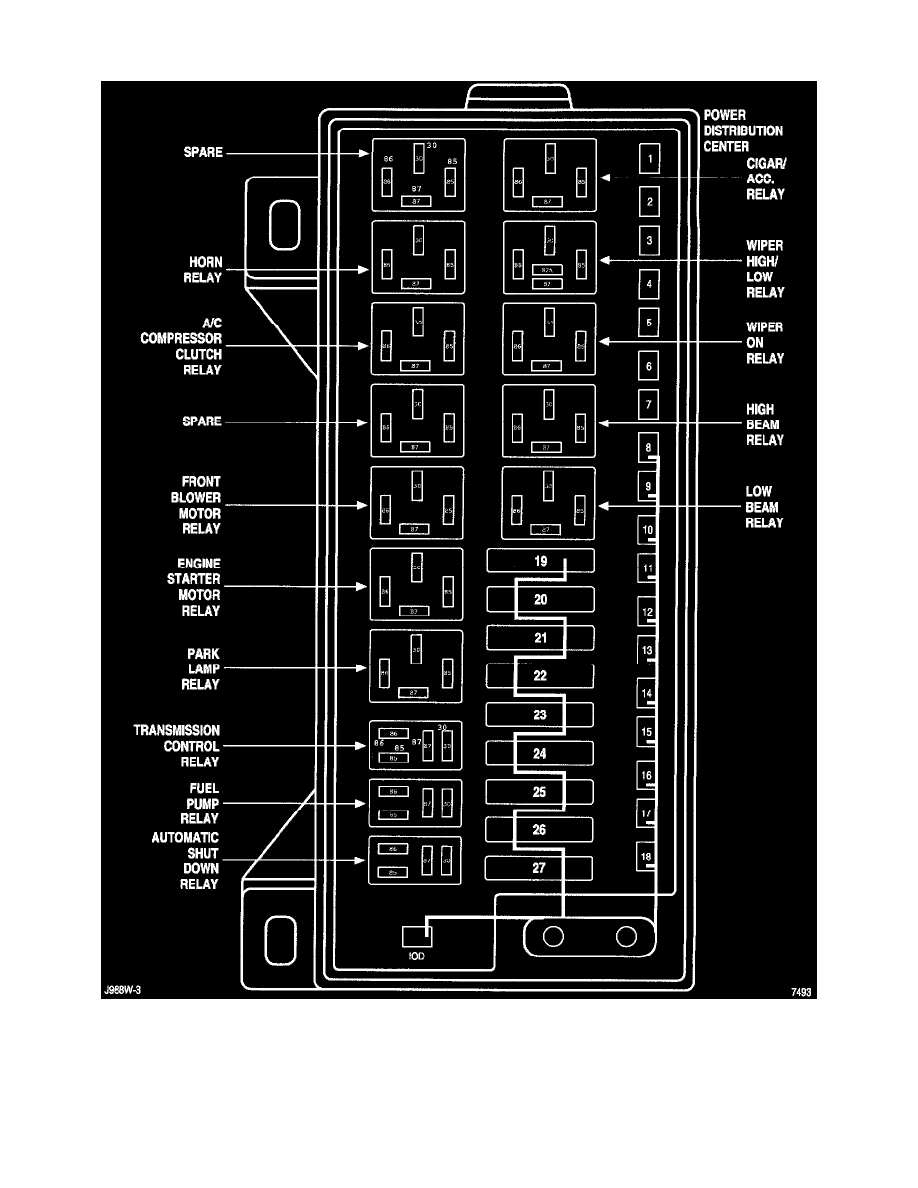

Power Distribution Center: Connector Views

Power Distribution

Starting and Charging
Power and Ground Distribution

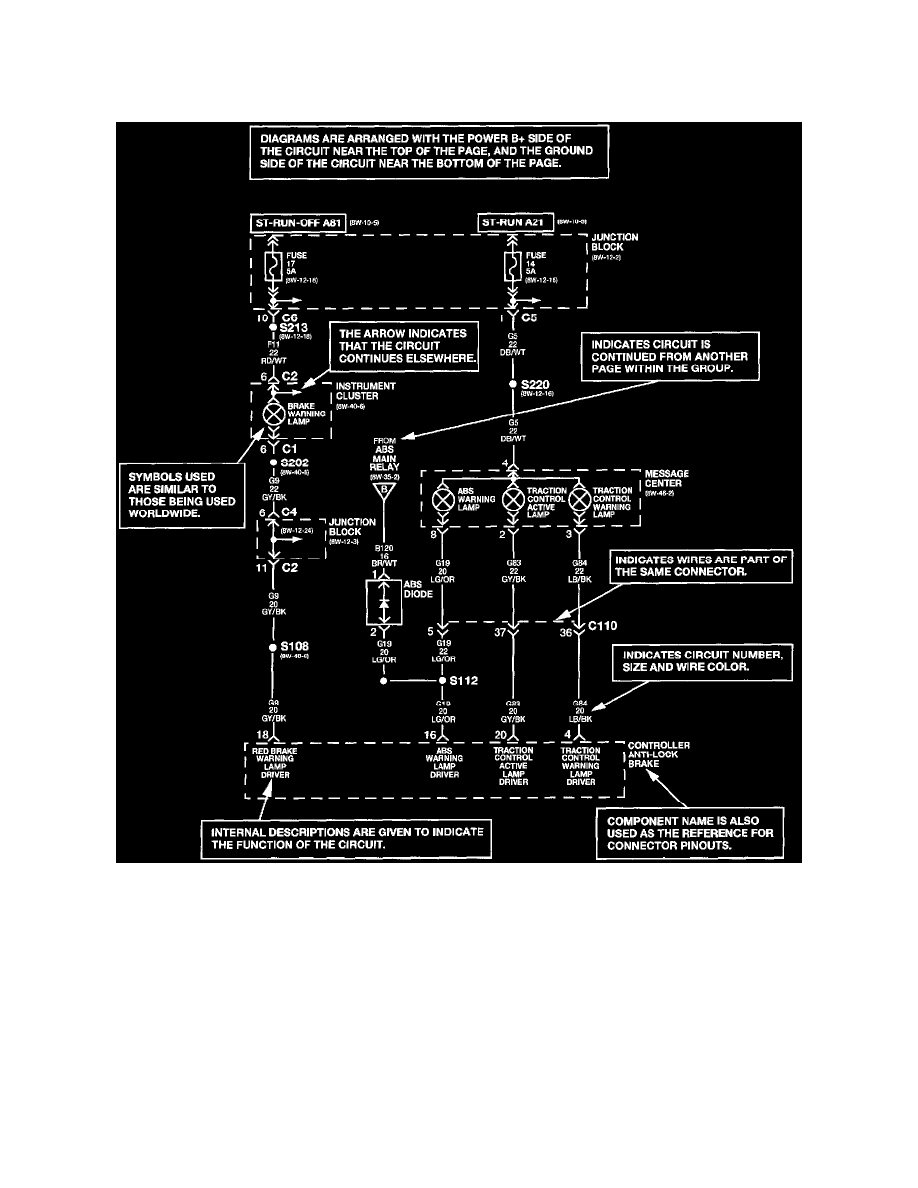

Power Distribution Center <--> [Electrical Accessory Panel] / Diagrams / Diagram Information and Instructions
Page 6203

Diagram Information and Instructions|Page 6204 > < Diagram Information and Instructions|Page 6202
