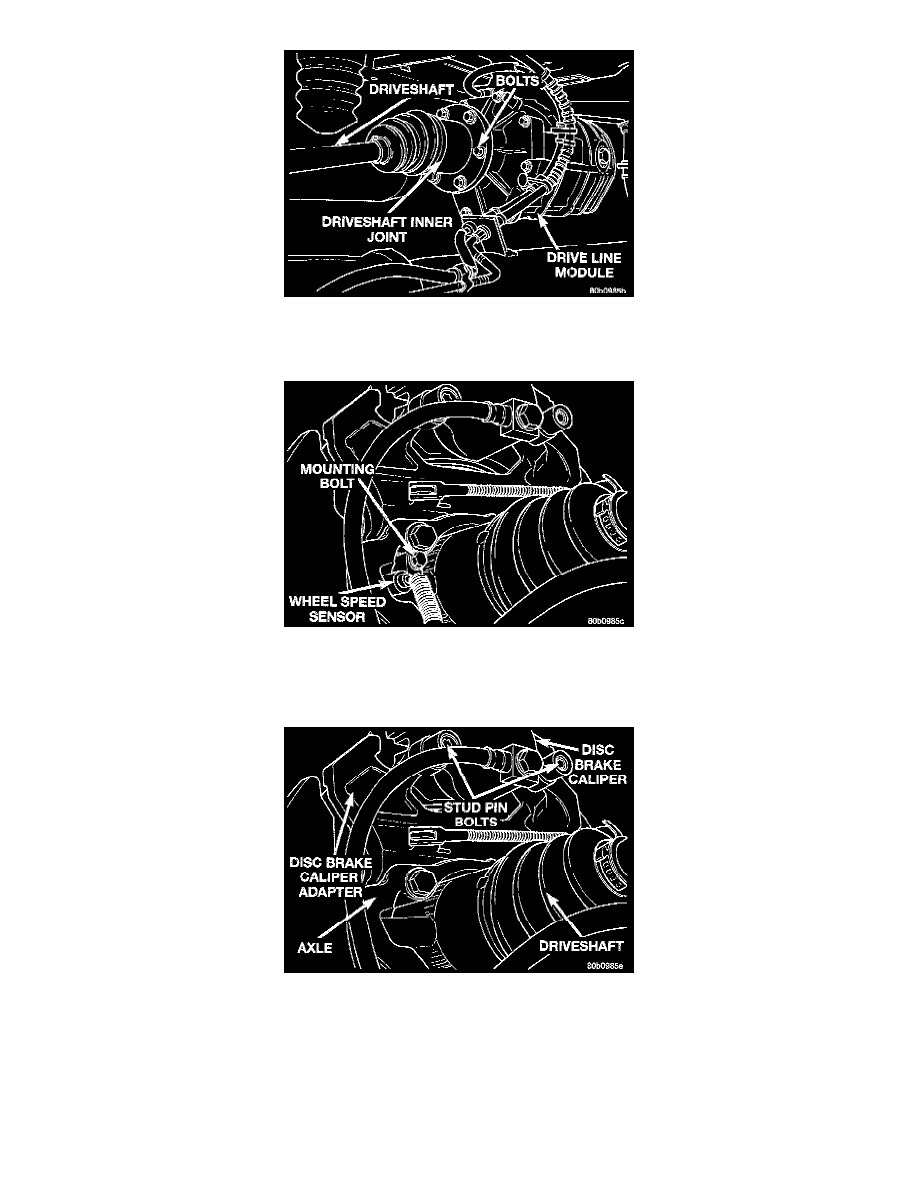

Driveshaft Attachment To Driveline Module

7. Remove the 6 bolts mounting the driveshaft inner joint to the output shaft of the rear drive line module.

Wheel Speed Sensor

8. Remove the rear wheel speed sensor from the rear hub/bearing.
9. Release the parking brake.

Caliper Guide Pin Bolts

10. Remove the disc brake caliper to adapter guide pin bolts.
