Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)

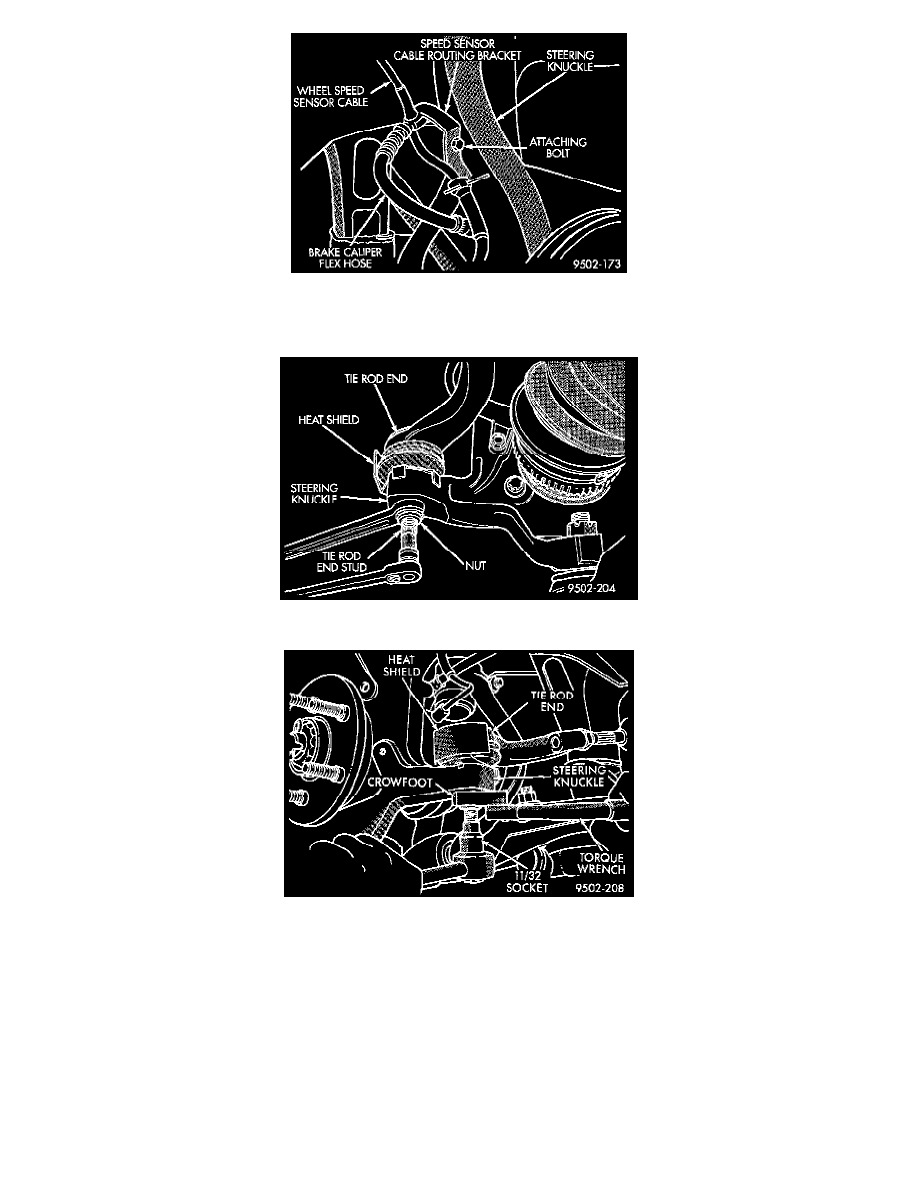

Wheel Speed Sensor Cable Routing Bracket
8. If equipped with antilock brakes, install the speed sensor cable on the steering knuckle and securely tighten bolt.
Installing Tie Rod End Nut
Torquing Tie Rod End Nut
9. Install tie rod end into the steering knuckle. Start tie rod end to steering knuckle nut onto stud of tie rod end. While holding stud of tie rod end
stationary, tighten tie rod end to steering knuckle nut. Using a crowfoot and 11/32 socket, tighten the nut to 61 Nm (45 ft. lbs.).
10. Install braking disc back on hub and bearing assembly.
