Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)
REMOVAL
1. Clamp driveshaft in a vise by the interconnecting shaft.

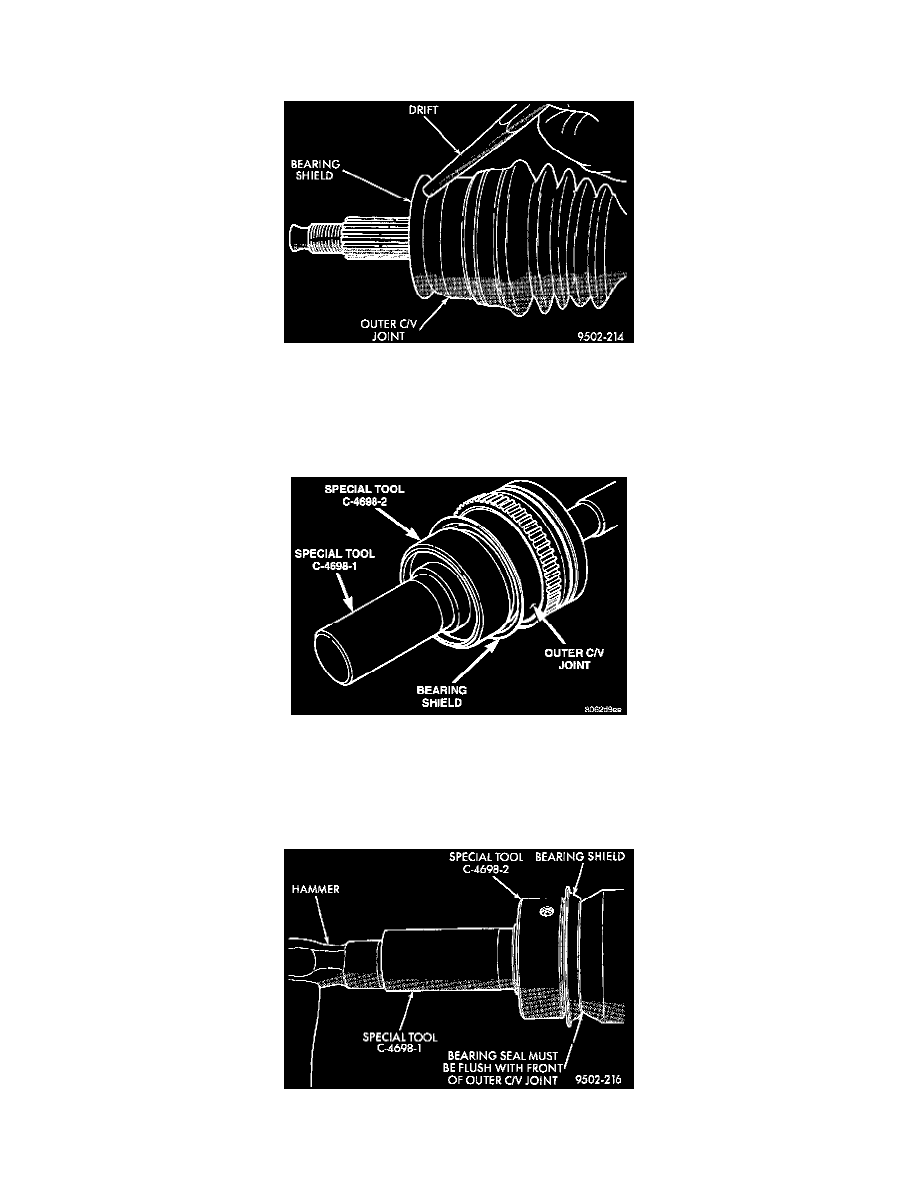

Removing Bearing Shield From Outer C/V Joint
2. Using a drift, tap around the entire edge of the bearing shield until it is removed from the outer C/V Joint.
INSTALLATION
1. Install bearing shield by hand on outer C/V Joint so that it is installed squarely on the C/V joint.
Special Tools For Installing Bearing Shield
2. Position installer, Special Tool, C-4698-2 and handle, Special Tool, C-4698-1 on face of bearing shield.
CAUTION: If bearing shield is not installed flush against the face of the outer C/V joint, interference with steering knuckle will occur when
driveshaft is installed.
Correctly Installed Bearing Shield
