Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)
CAUTION: When installing guide pin bolts extreme caution should be taken not to cross-thread the caliper guide pin bolts.

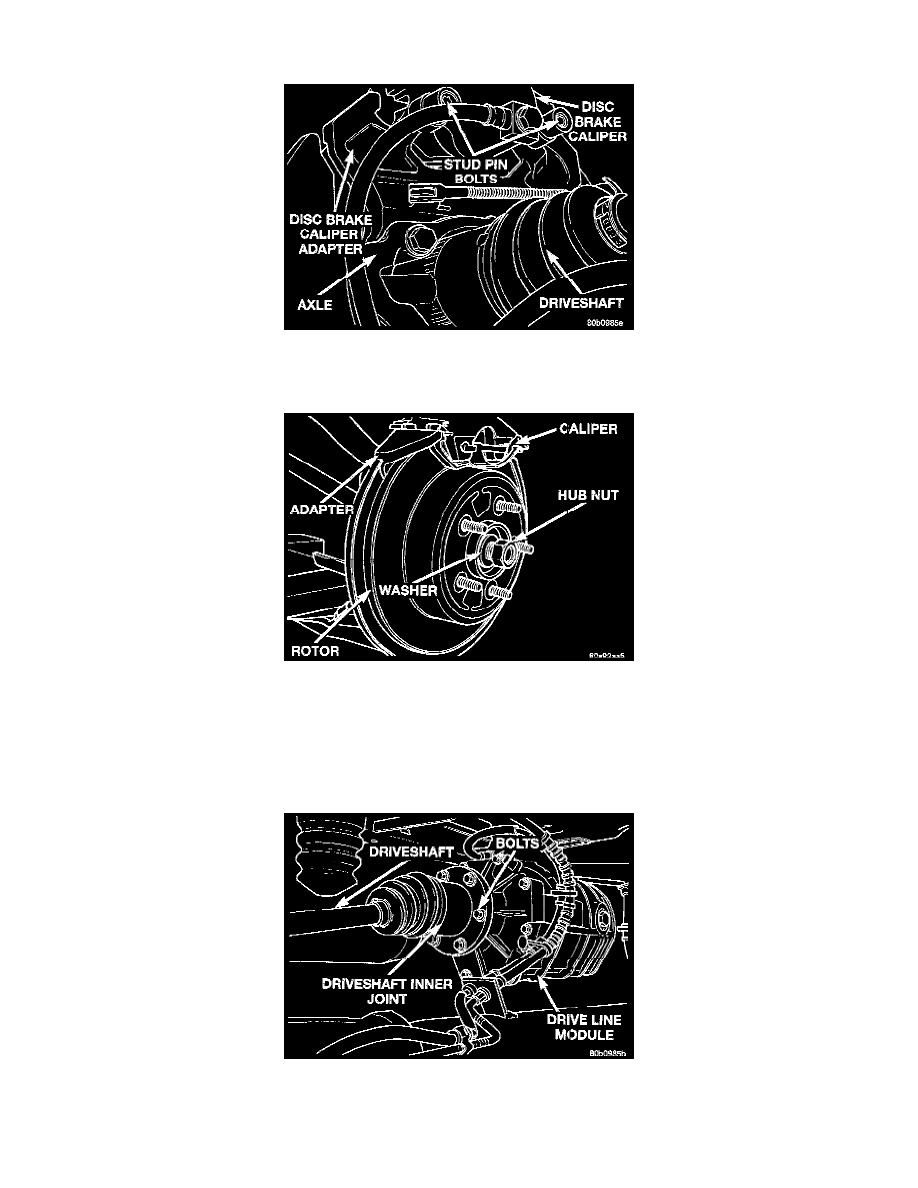

Caliper Guide Pin Bolts
6. Install the disc brake caliper guide pin bolts. Tighten the guide pin bolts to a torque of 22 Nm (192 inch lbs.).
Hub Nut And Washer
7. Clean all foreign material off the threads of the outer C/V joint stub shaft. Install the washer and hub nut on the stub shaft of the outer C/V joint.
8. Lower vehicle.
9. Set the park brake. This is required to keep the driveshaft from rotating when tightening and torquing the hub nut and driveshaft inner joint to
driveline module mounting nuts.
10. Raise vehicle.
Driveshaft Attachment To Driveline Module
11. Tighten the driveshaft, inner joint to drive line module output shaft mounting bolts to a torque of 61 Nm (45 ft. lbs.).
