Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)
Case: Service and Repair
End Cover Ball Bearing
The end cover ball bearing can be removed and installed without removing the Power Transfer Unit from the vehicle. When replacing the bearing the
output seal must be removed to gain access to the bearing.
REMOVAL
1. Raise vehicle on hoist.
2. Remove right front half shaft from vehicle.

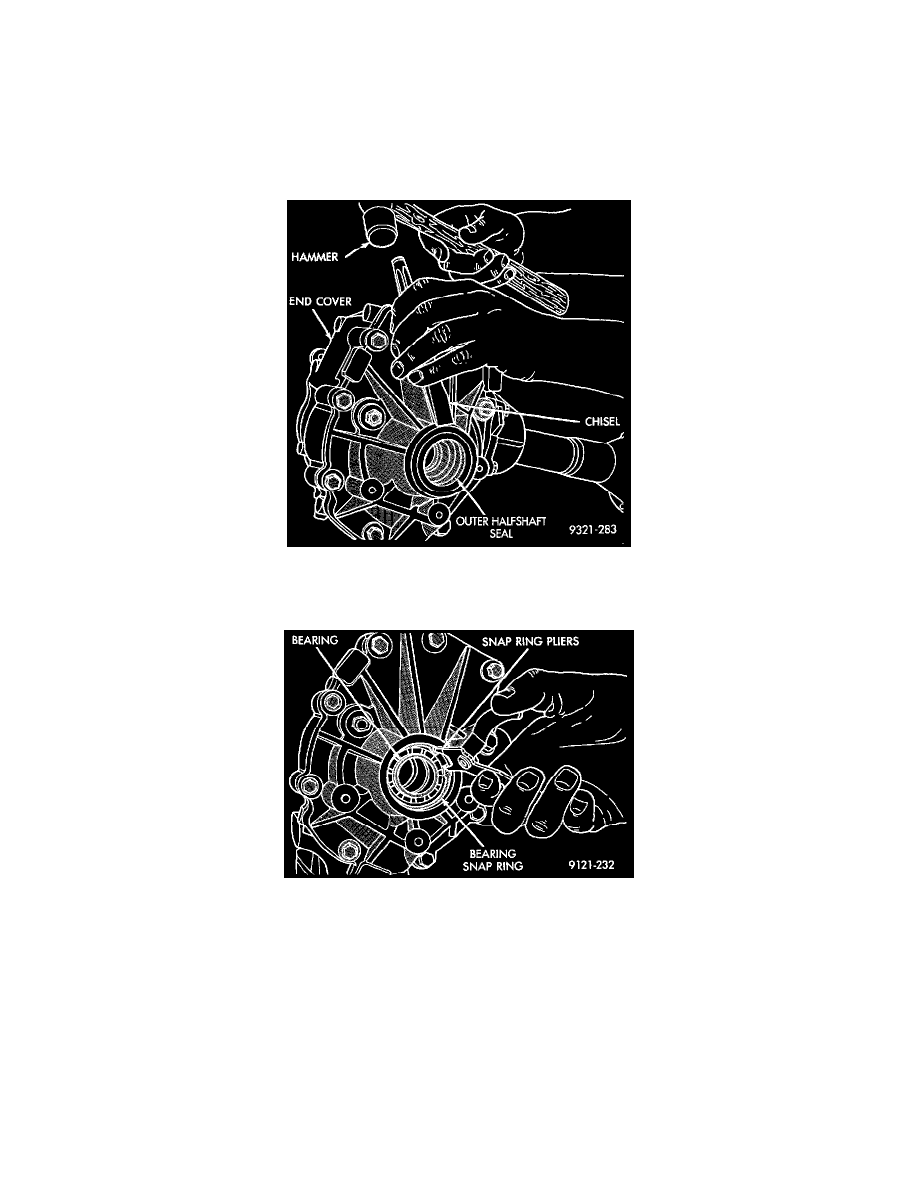

Output Seal Removal
3. Remove output seal with a hammer and chisel.
Bearing Snap Ring
4. Remove bearing retaining snap ring.
