Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)

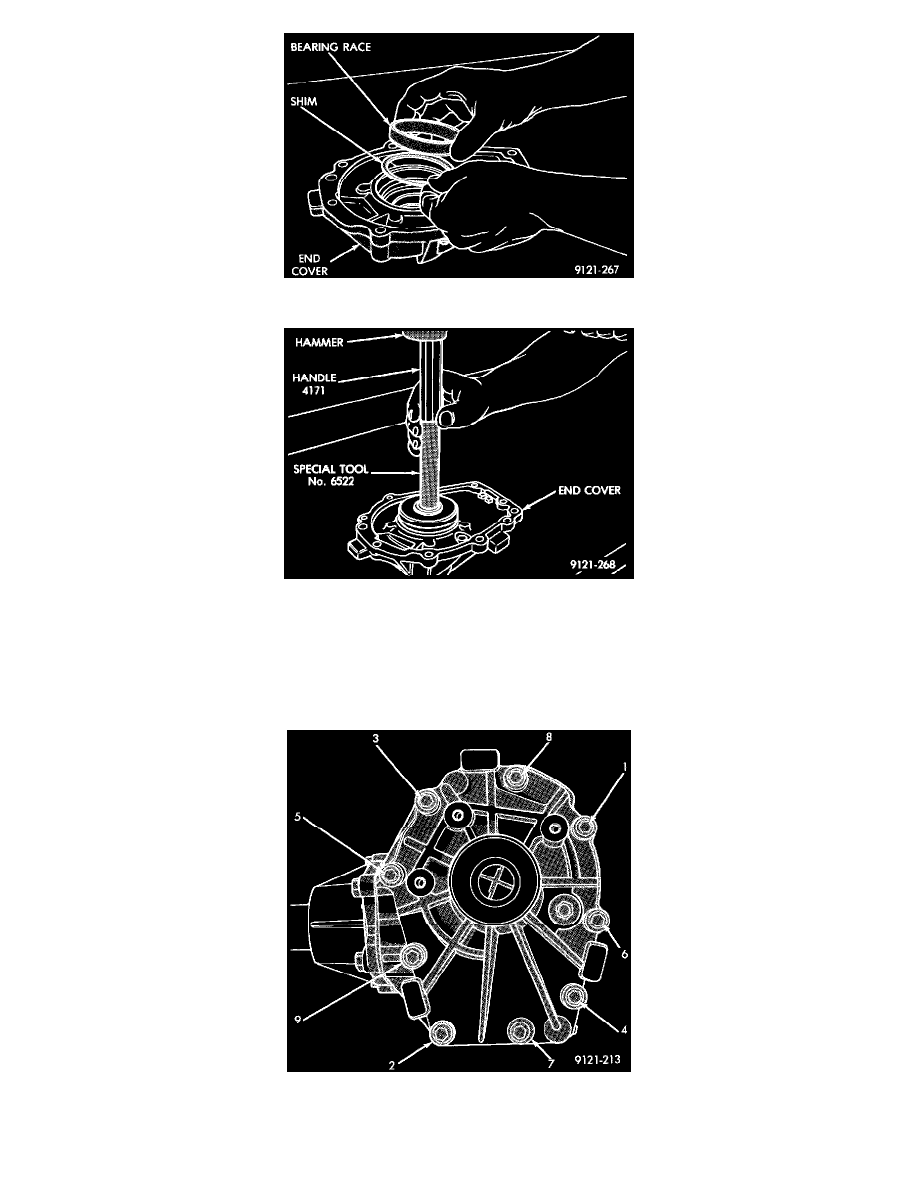

Bearing Shim And Race
Installing Bearing Race
3. Reinstall the original bearing race and shim using special tool No. 6522.
CAUTION: The original shim must be installed behind the bearing cup to maintain proper bearing preload.
4. Apply MOPAR Gasket Maker, Loctite Gasket Eliminator No. 518 or equivalent to sealing surfaces of end cover.
Bolt Tightening Sequence
5. Place end cover onto P.T.U. case and install bolts. Tighten bolts to 28 Nm (250 inch lbs.) in the sequence shown. Retighten first bolt after all
