Voyager L4-2.4L VIN B (2001)
Water Pump: Service and Repair
Water Pump
REMOVAL
1. Disconnect negative cable from battery.
2. Raise vehicle on a hoist.
3. Remove the right inner splash shield.
4. Remove the accessory drive belts.
5. Drain the cooling system.
6. Support engine from the bottom and remove right engine mount.
7. Remove right engine mount bracket.
8. Remove the timing belt.
9. Remove timing belt idler pulley.
10. Hold camshaft sprocket with Special tool C-4687 and adaptor C-4687-1 while removing bolt. Remove both cam sprockets.
11. Remove the timing belt rear cover.

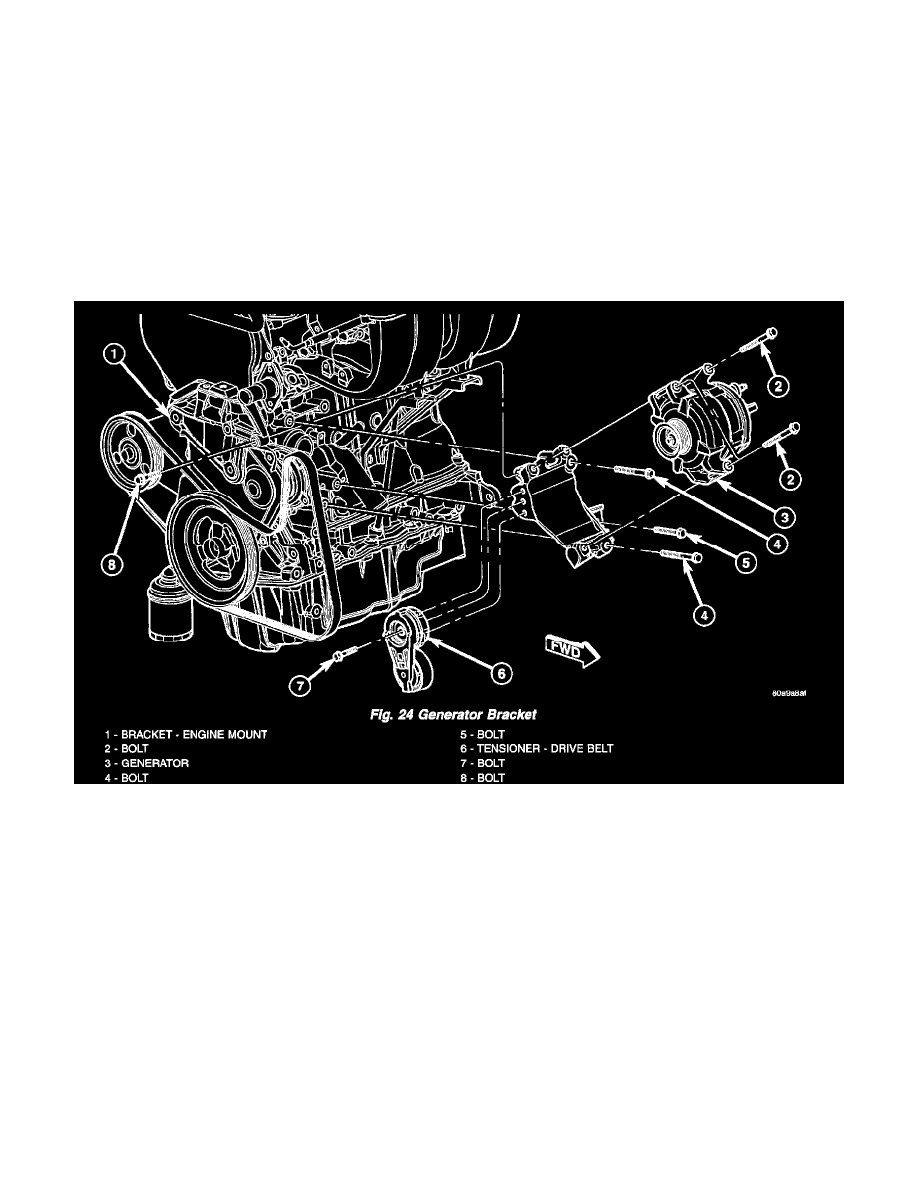

12. Remove the generator and bracket.
