Voyager L4-2.4L VIN B (2001)

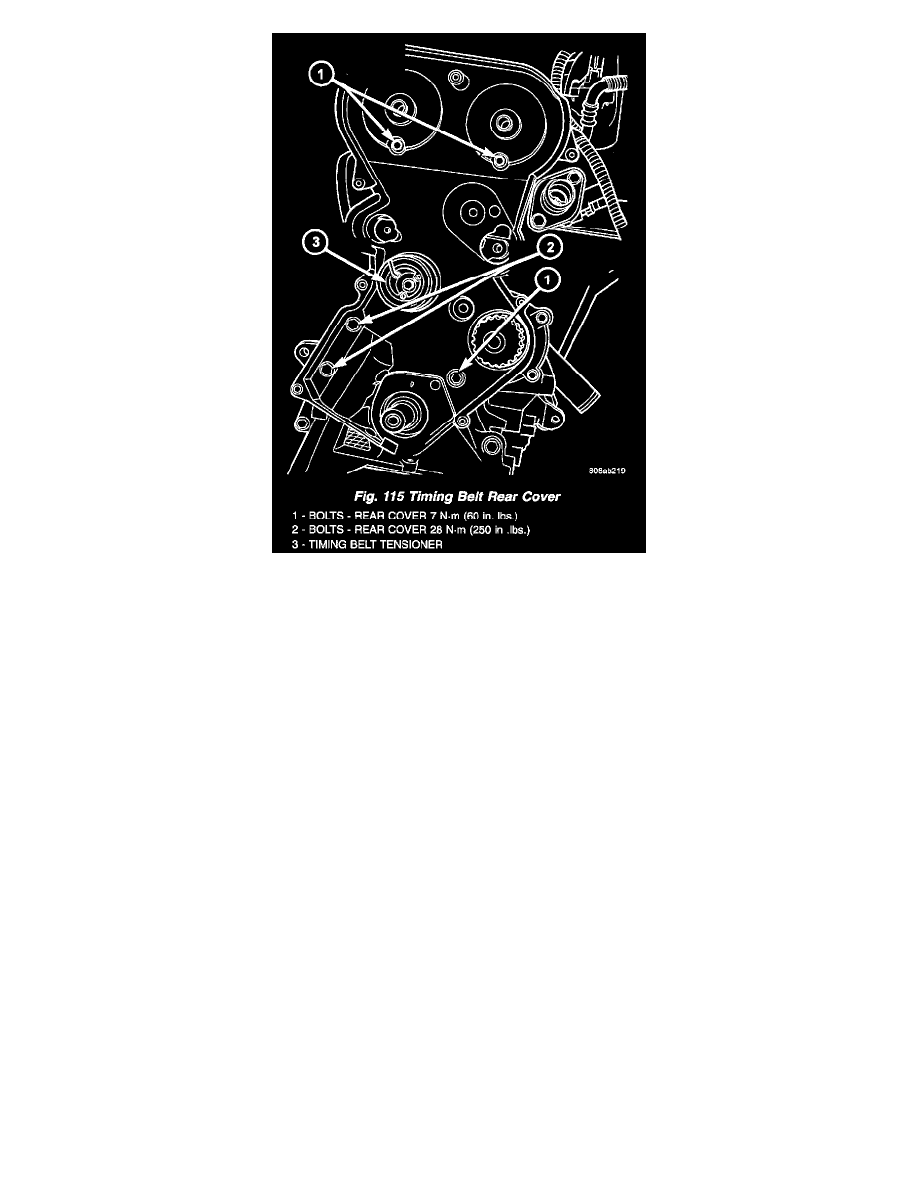

6. Remove rear cover fasteners and remove cover from engine (Fig. 115).
INSTALLATION
REAR COVER
1. Install timing belt rear cover and bolts (Fig. 115).
CAUTION: Do not use an impact wrench for tightening camshaft sprocket bolt. Damage to the timing locating pin can occur. Hand tighten using
a wrench ONLY.
2. Install camshaft sprockets. Hold sprockets with Special Tool 6848 and tighten center bolt to 101 Nm (75 ft. lbs.).
3. Install timing belt idler pulley and tighten mounting bolt to 61 Nm (45 ft. lbs.).
4. Install timing belt.
5. Install engine mount bracket and tighten bolts to 61 Nm (45 ft. lbs.) (Fig. 113).
6. Install front covers.
FRONT COVER
1. Install timing belt front covers (Fig. 112). Tighten fasteners to 7 Nm (60 in. lbs.).
2. Install generator drive belt tensioner.
3. Install crankshaft vibration damper.
