Voyager L4-24L VIN B (2001) Blower Motor Resistor Diagrams

Page 1
background image

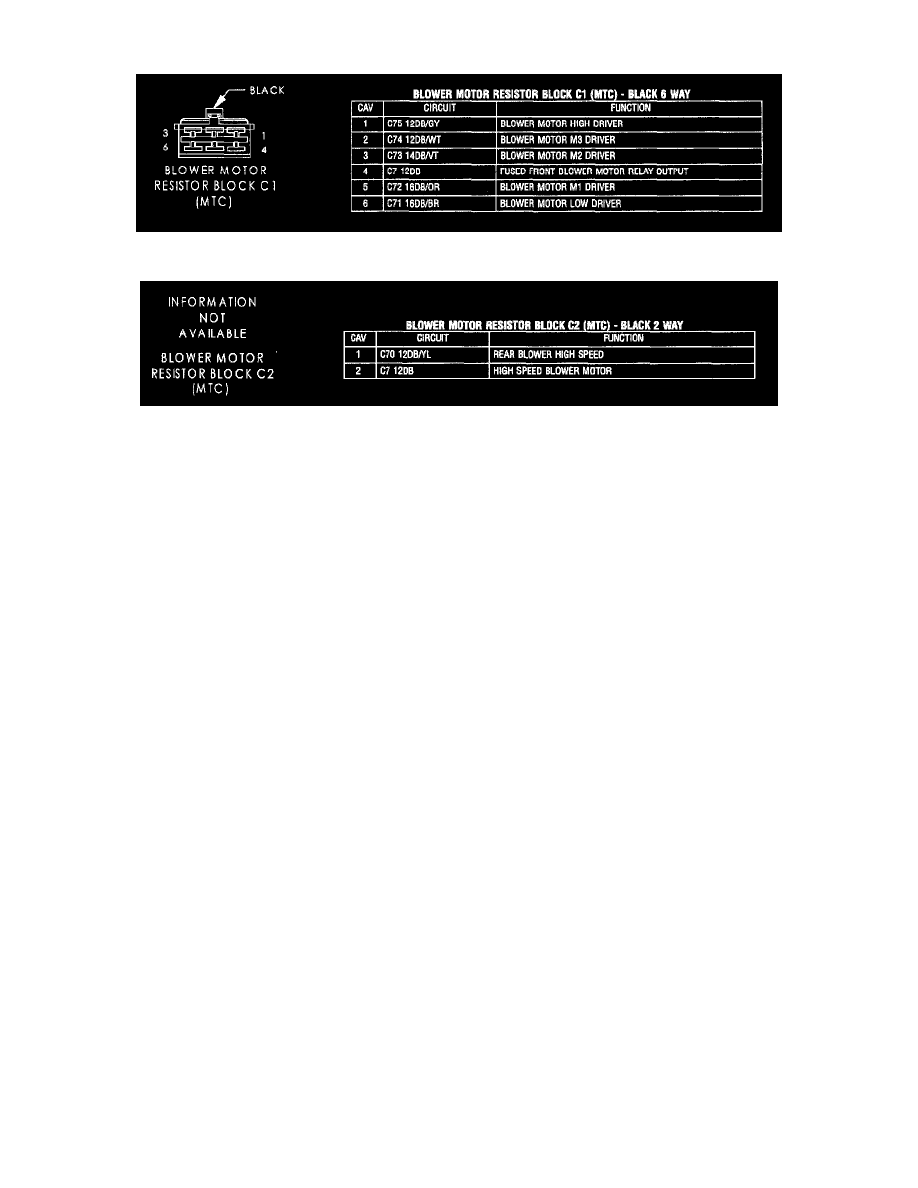

Blower Motor Resistor: Diagrams

Blower Motor Resistor Block C1 (MTC)

Blower Motor Resistor Block C2 (MTC)
