Evaporator Core: Service and Repair
Evaporator Housing Disassembly and Assembly - Front

DISASSEMBLY

1. Place HVAC unit assembly on workbench.

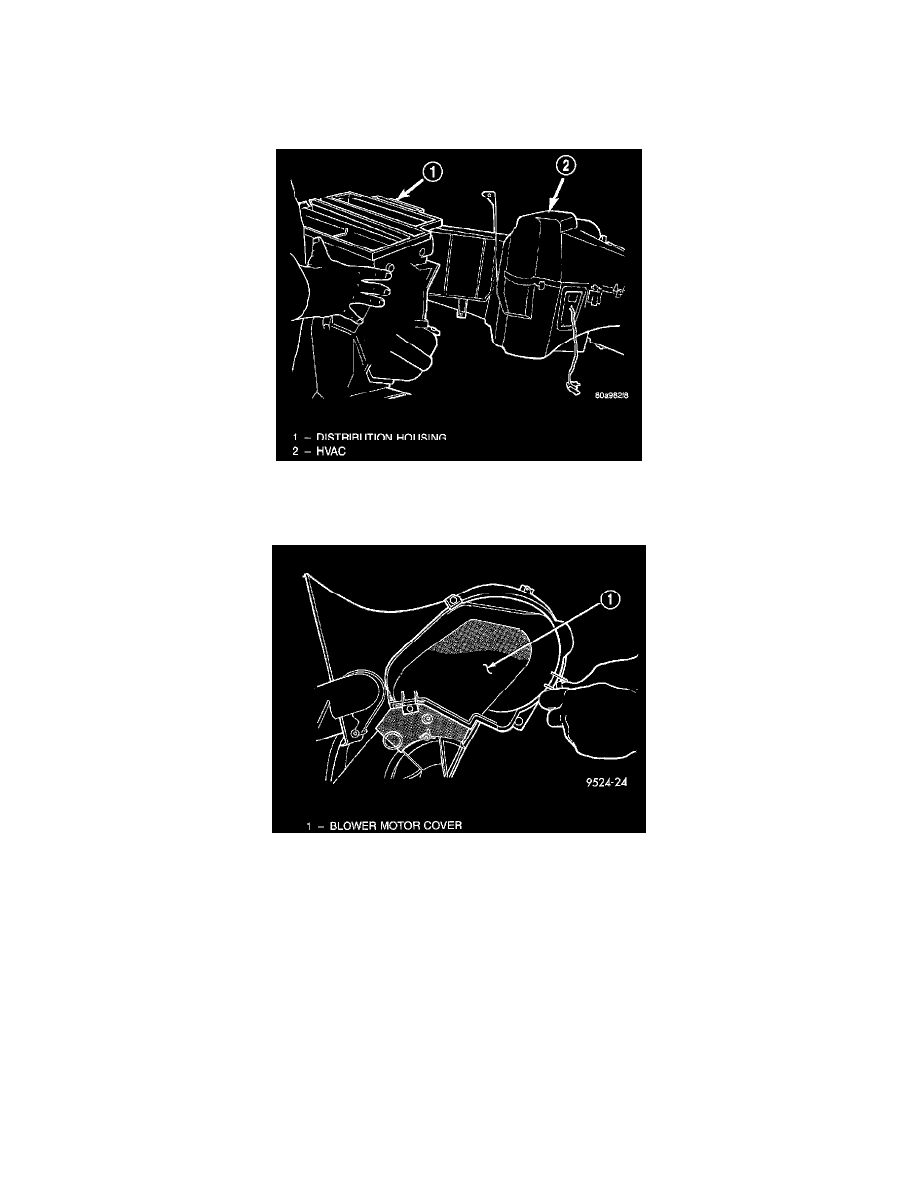

Distribution Housing

2. Remove distribution housing mounting screws.

Blower Motor Cover

3. Remove blower motor cover.
