Voyager L4-2.4L VIN B (2001)

Page 5
background image

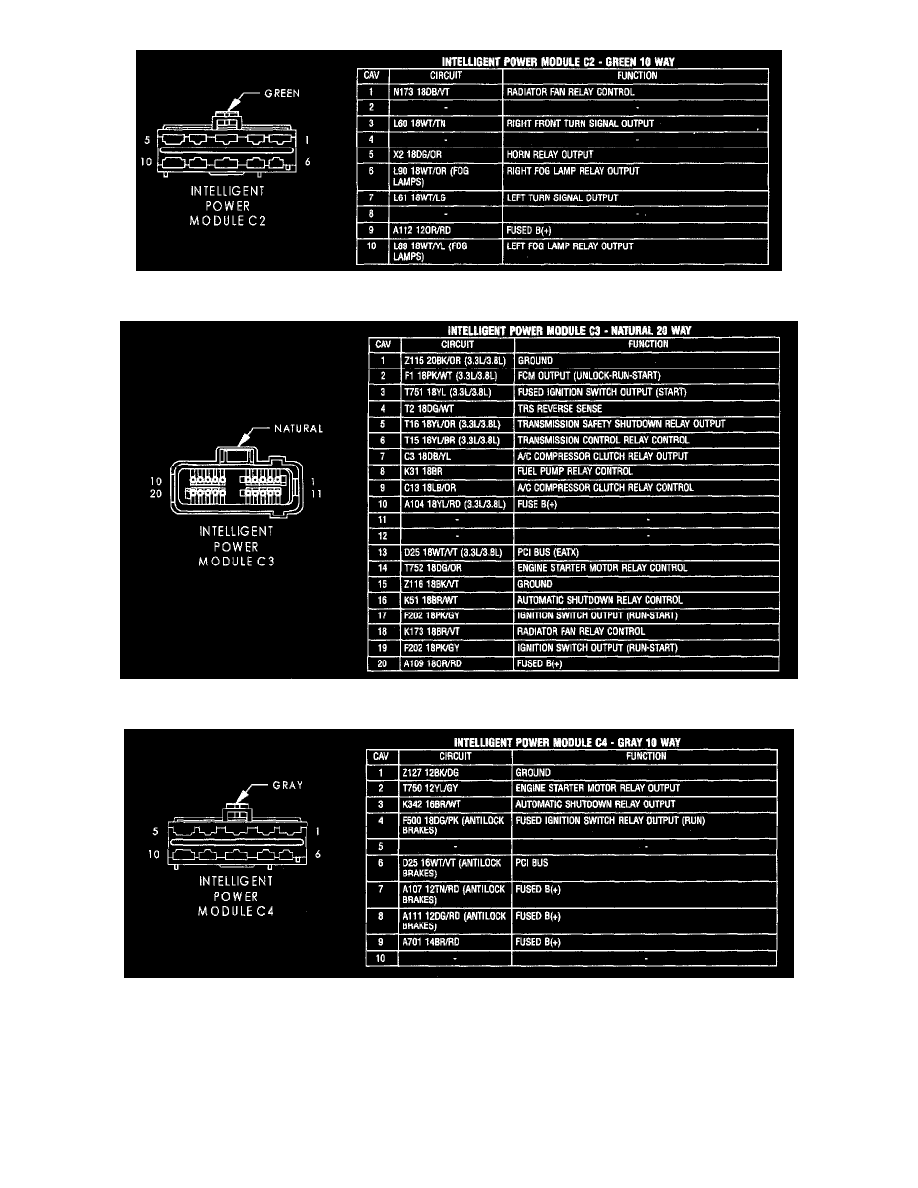

Intelligent Power Module C2

Intelligent Power Module C3

Intelligent Power Module C4
