Voyager L4-24L Fuel Pump Relay Location (2001)
Powertrain Management
Fuel Delivery and Air Induction
Relays and Modules - Fuel Delivery and Air Induction
Fuel Pump Relay
Component Information
Locations
Page 1
Fuel Pump Relay: Locations
8w-10-2

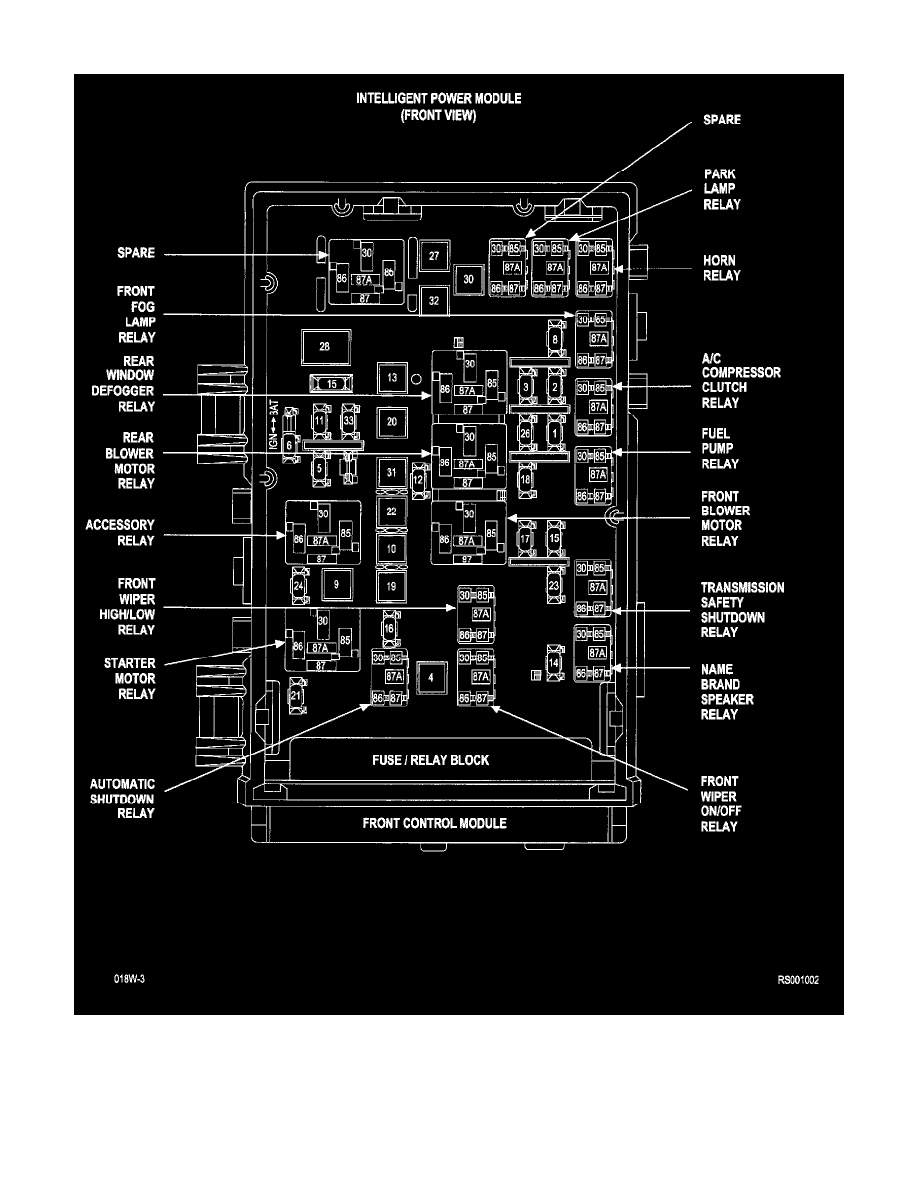

The fuel pump relay is located in the PDC.
