Voyager L4-2.4L VIN B (2001)

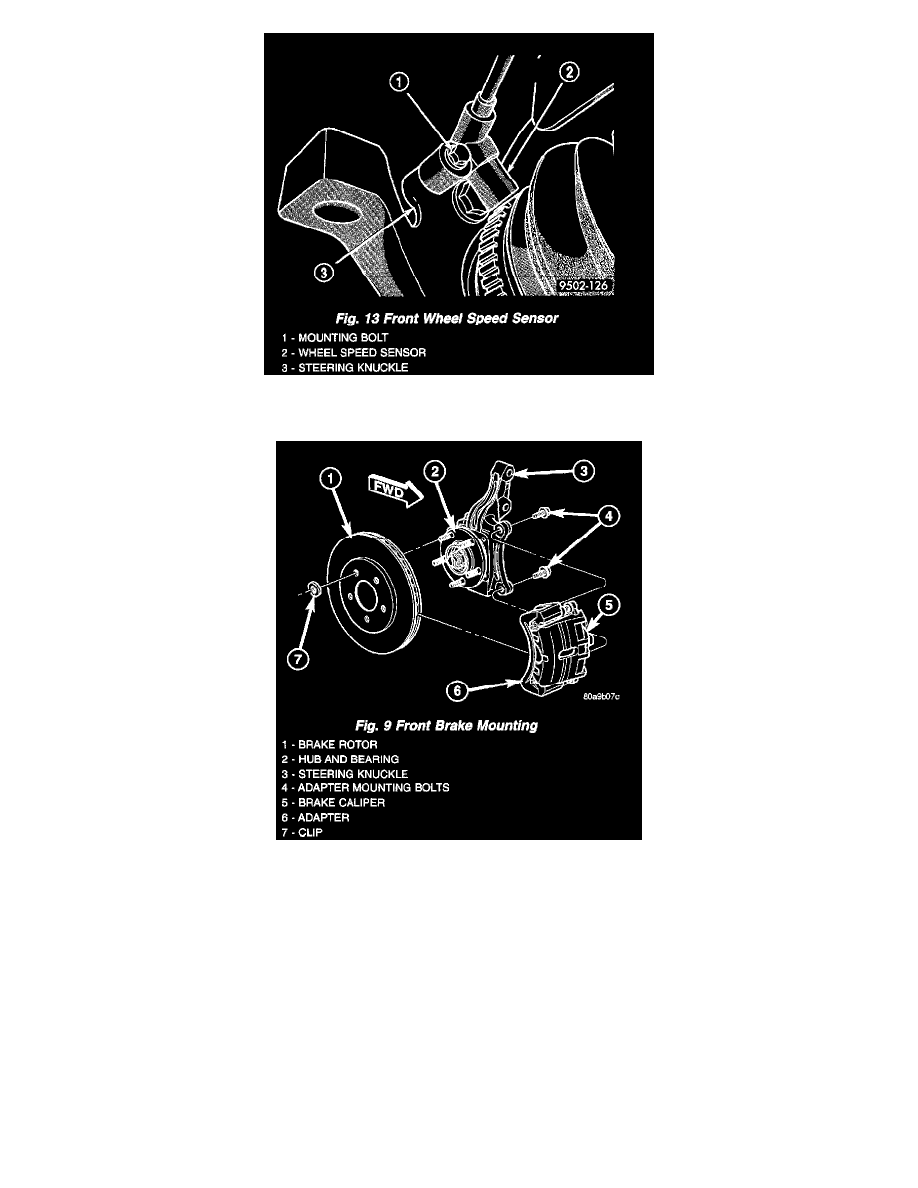

7. If equipped with antilock brakes, install wheel speed sensor and mounting bolt on steering knuckle. Tighten the speed sensor bolt to a torque of 7
Nm (60 inch lbs.).
8. Install brake rotor on hub and bearing.
9. Install disc brake caliper and adapter assembly on steering knuckle. Install adapter amounting bolts and tighten to 169 Nm (126 ft. lbs.).
10. Clean any debris from the threads of the outer C/V joint stub axle.
11. Install the washer and hub nut on stub axle.
12. Have a helper apply the vehicle's brakes to keep hub from turning, then tighten hub nut to a torque of 244 Nm (180 ft. lbs.).
13. Install the spring wave washer on the end of the stub axle.
