8. Remove nut attaching outer tie rod end to steering knuckle. Remove nut by holding tie rod end stud with a socket while loosening and removing

nut with wrench.

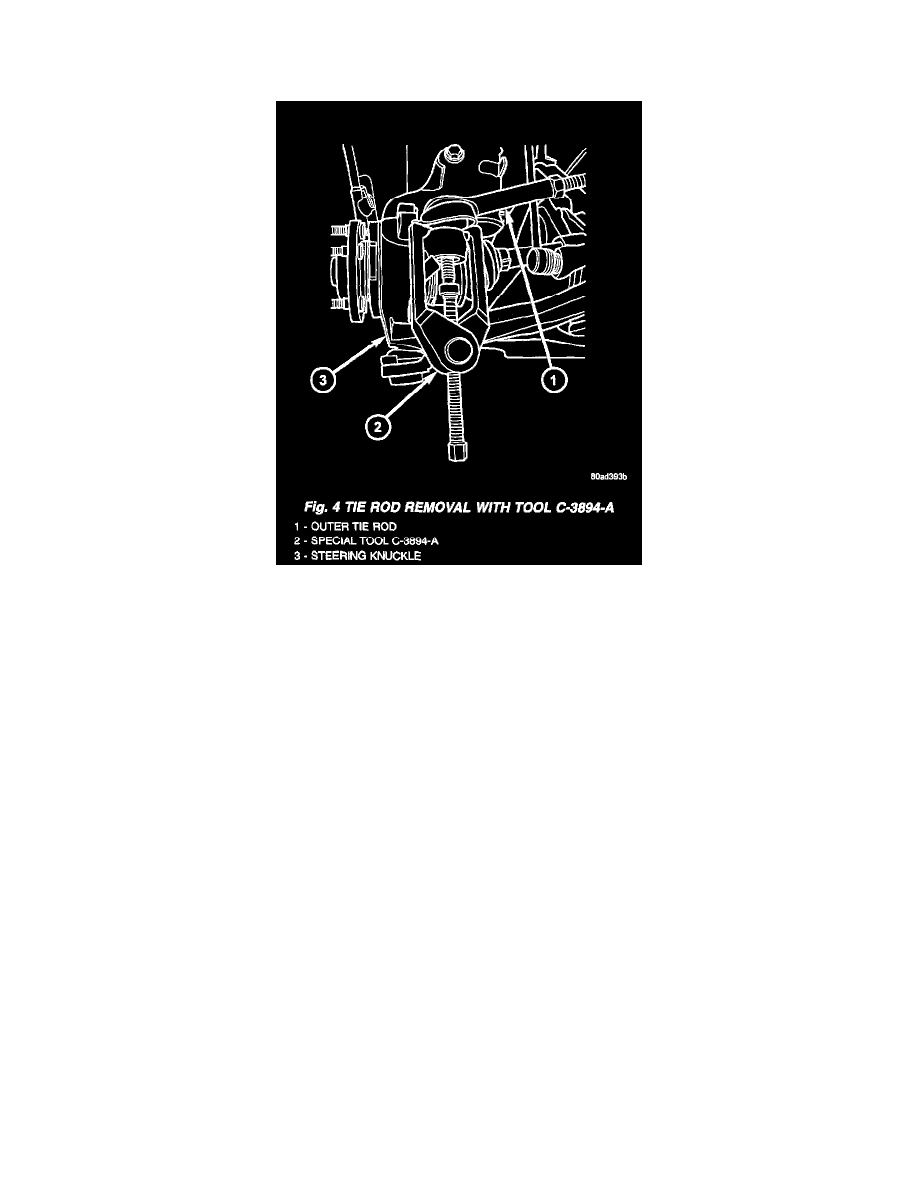

9. Remove both tie rod ends from steering knuckles, using Puller Special Tool C-3894-A.

10. Remove the lower control arm rear bushing retainer bolts located on each side of each lower control arm rear bushing.
