Voyager L4-2.4L VIN B (2001)
Band: Adjustments
ADJUSTMENT - FRONT BAND
The front (kickdown) band adjusting screw is located on the left side of the transmission case above the manual valve and throttle valve levers.
1. Disconnect battery negative cable.
2. Remove air cleaner assembly.

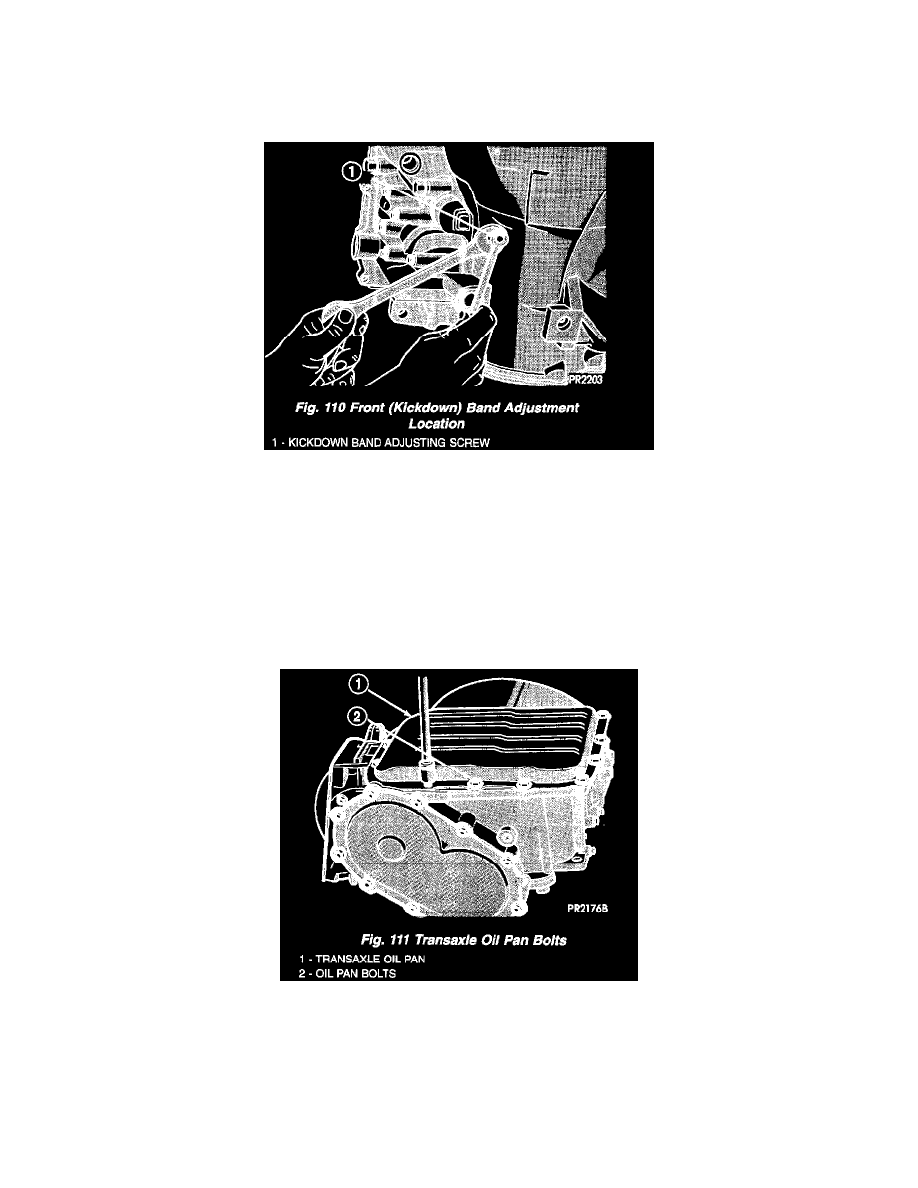

3. Loosen band adjusting screw locknut (Fig. 110). Then back locknut off 3 - 5 turns. Be sure adjusting screw turns freely in case. Apply lubricant to
screw threads if necessary.
4. Tighten band adjusting screw to 8 Nm (72 inch lbs.).
5. Back off front band adjusting screw 2 1/4 turns.
6. Hold adjuster screw in position and tighten locknut to 47 Nm (35 ft. lbs.) torque.
7. Install air cleaner assembly.
8. Connect battery negative cable.
ADJUSTMENTS - REAR BAND
The transmission oil pan must be removed for access to the rear (low/reverse) band adjusting screw.
1. Raise vehicle.
