Page 14
background image

4. Install the OD/Reverse piston assembly to the input clutch retainer as shown in (Fig. 263).

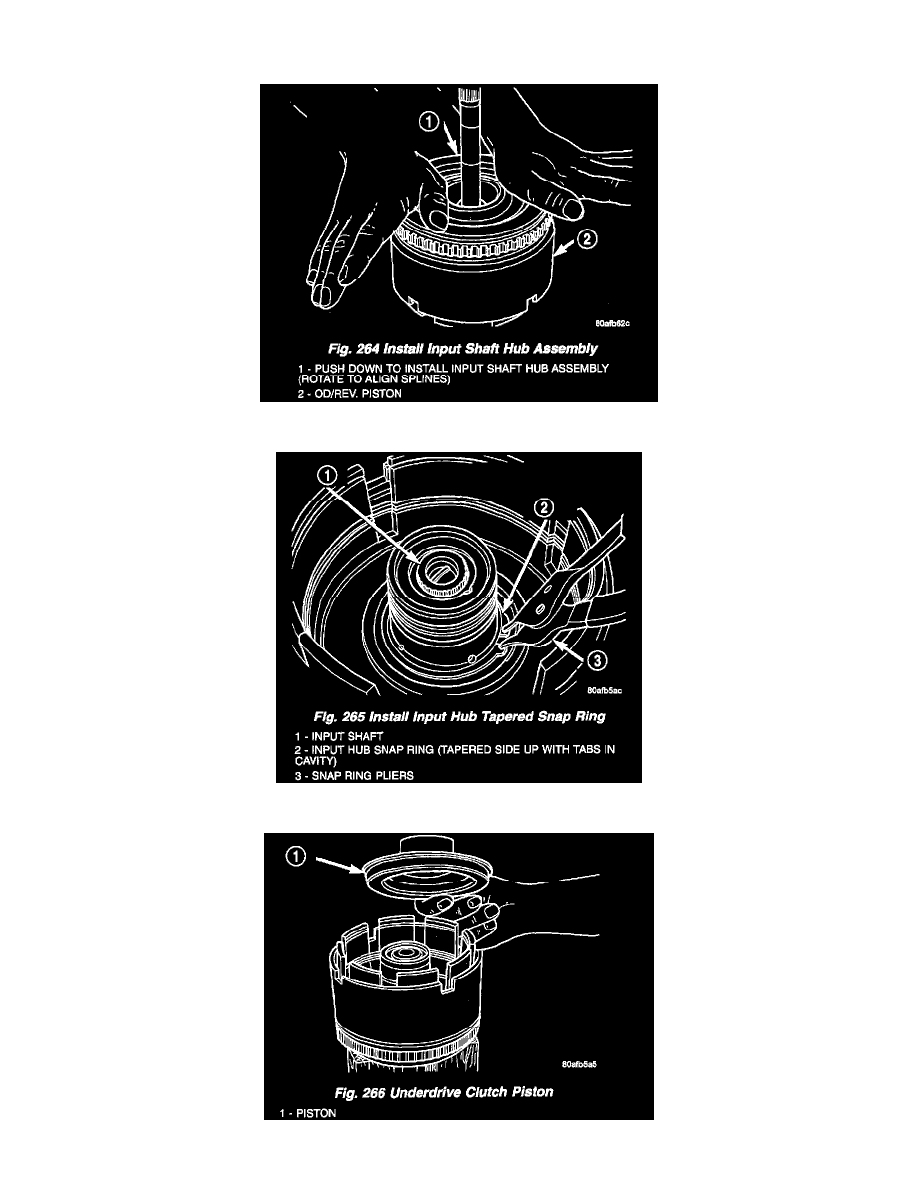

5. Install the input hub/shaft assembly to the OD/Reverse piston/clutch retainer assembly (Fig. 264).

6. Install input hub tapered snap ring (Fig. 265).
