Voyager L4-2.4L VIN B (2001)

Page 6
background image

INSTALLATION

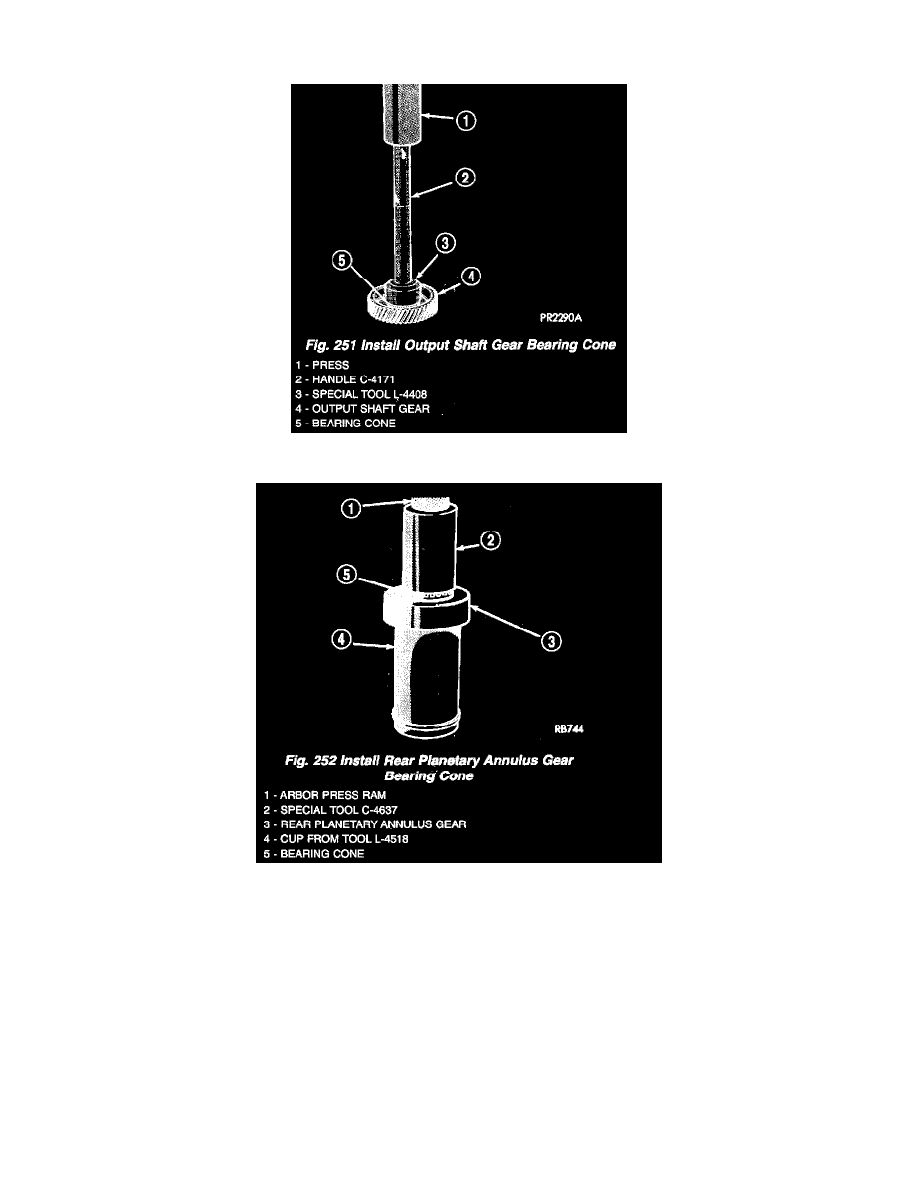

1. Install output shaft bearing cone using Tool L-4408, C-4171, and a suitable press (Fig. 251).

2. Install rear planetary annulus gear bearing cone using tool C-4637 and cup from Tool L-4518 (Fig. 252).
