Voyager L4-2.4L VIN B (2001)
Wiper Motor Linkage: Service and Repair
REMOVAL
1. Remove the windshield wiper unit from vehicle. (Refer to WIPER MODULE - REMOVAL).
2. Place the wiper unit on a suitable work surface.
3. Remove nuts holding the cowl cover brackets to the wiper unit.
4. Remove cowl cover brackets from the wiper unit.

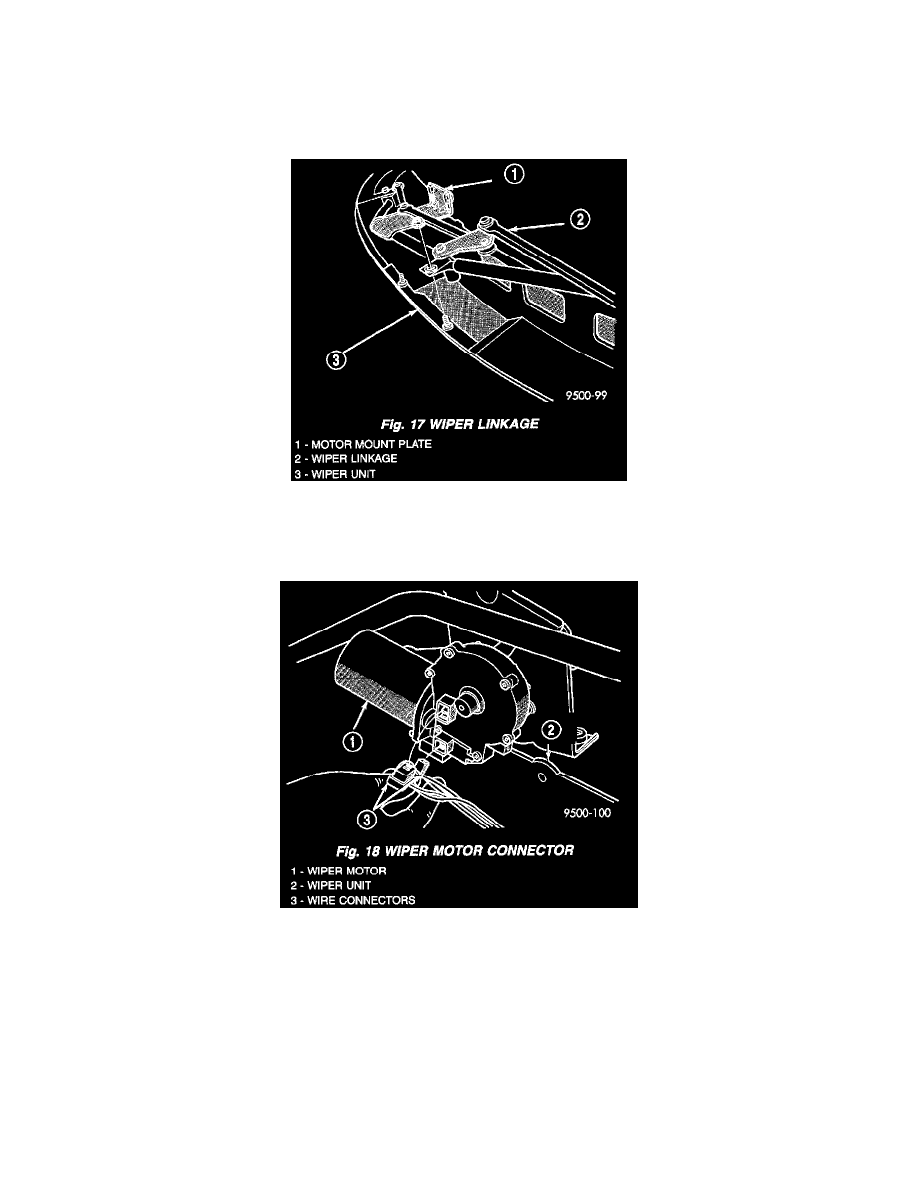

Fig.17 Wiper Linkage
5. Remove nuts holding linkage and motor mount plate to the wiper unit.
6. Remove the wiper linkage from the wiper unit.
Fig.18 Wiper Motor Connector
7. Disconnect the wire connectors from back of the wiper motor.
INSTALLATION
1. Connect the wire harness connector.
2. Install the linkage on the wiper unit.
3. Install the nut holding the linkage and mount plate to the wiper unit.
4. Install the cowl cover brackets to the wiper nut.
5. Install the cowl cover.
6. Install the wiper arms and blades.
