Timing Belt: Service and Repair
REMOVAL

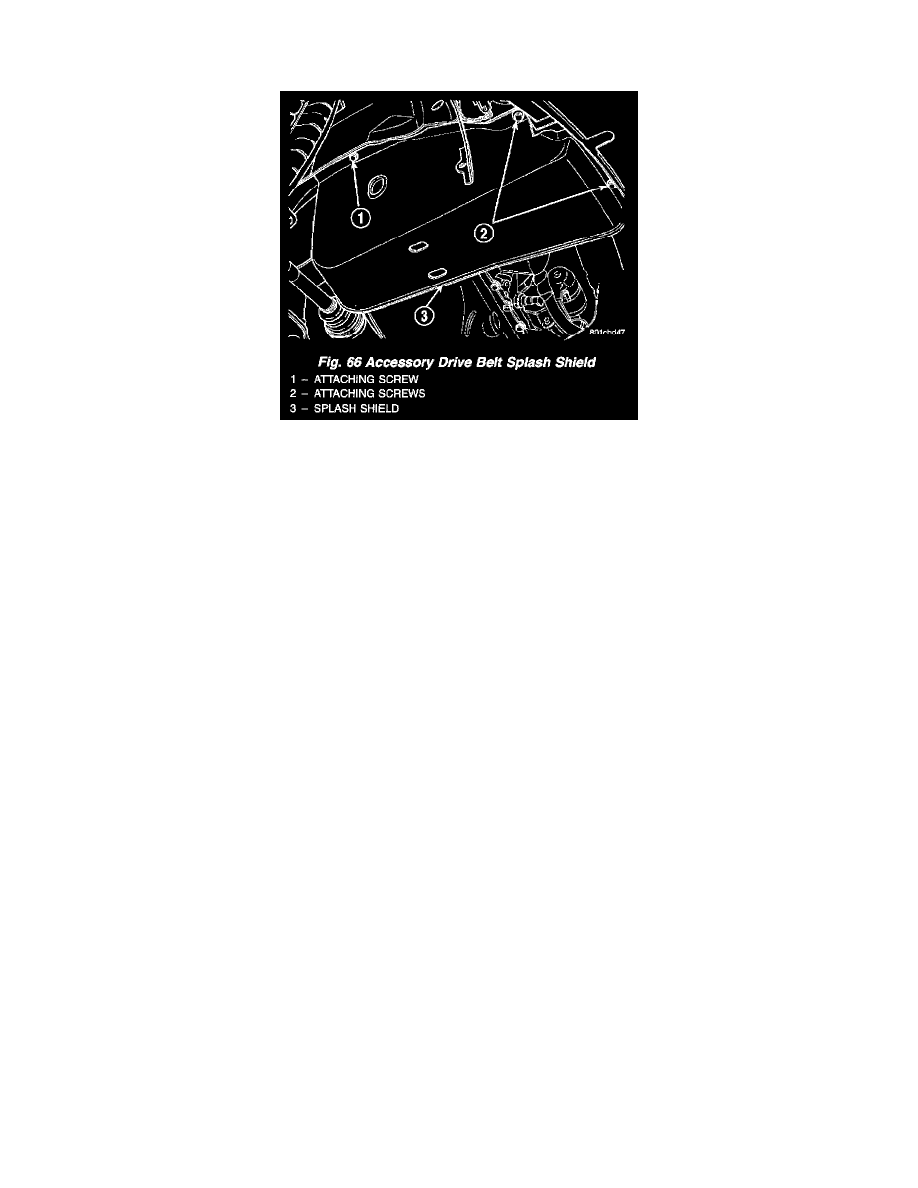

Fig. 66
1. Raise vehicle and remove accessory drive belt splash shield (Fig. 66).
2. Remove accessory drive belts.
