Timing Belt: Diagrams (page 4 of 7)
- Make
- Chrysler
- Model
- Voyager
- Engine
- V6-3.0L VIN 3
- Year
- 2000
- Section
- Timing Belt
MaintenanceDiagrams · page 4 of 7

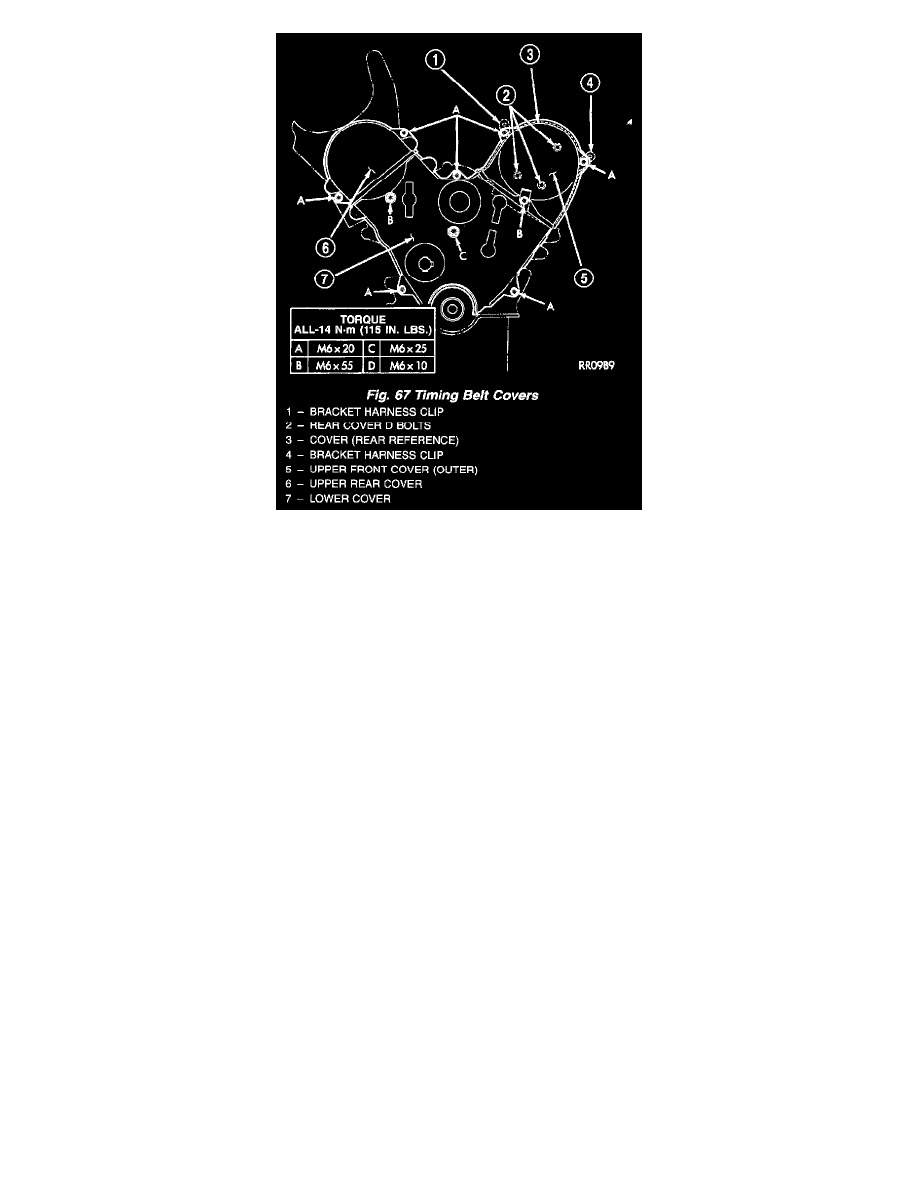

Fig. 67
5. Remove engine support bracket (Fig. 67).
6. Remove timing belt covers (Fig. 67).
