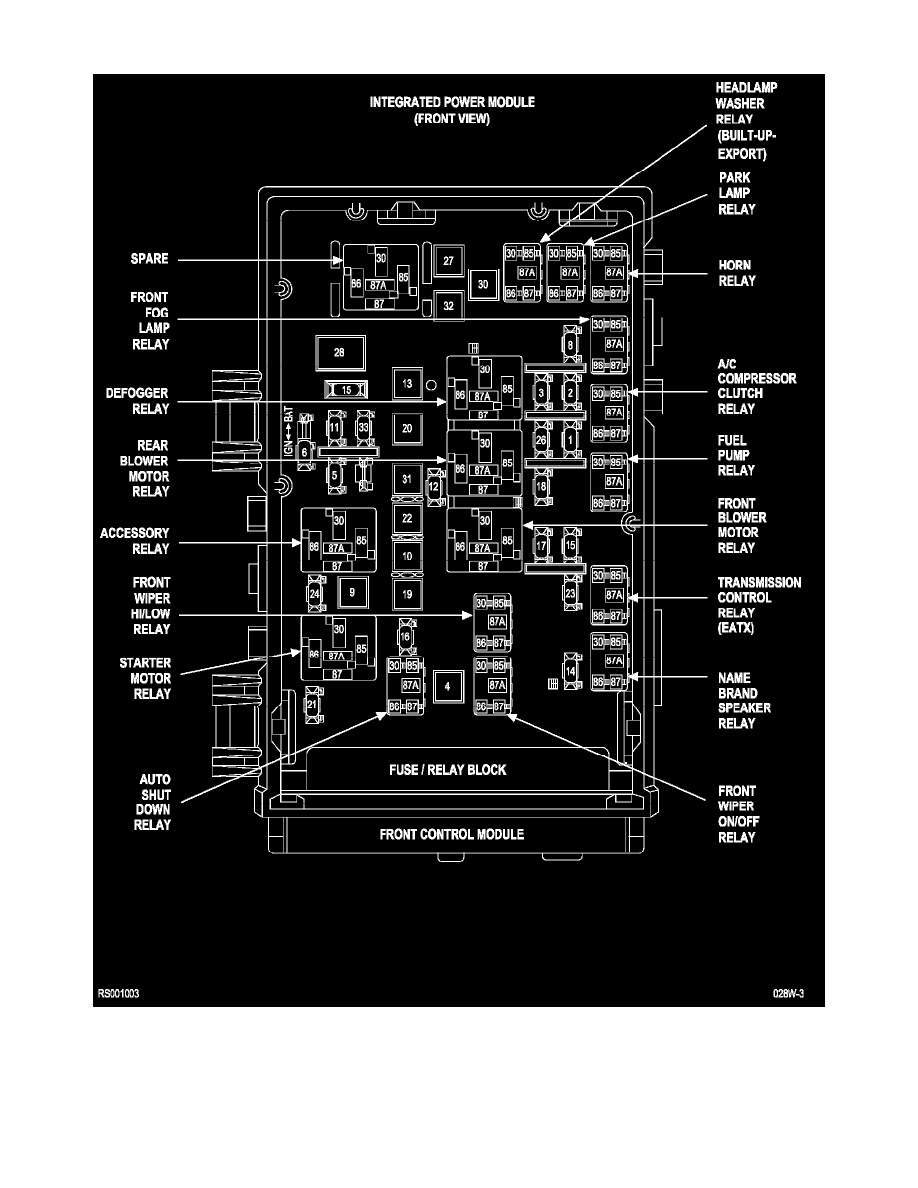

Accessory Delay Relay: Locations

Integrated Power Module (Front View)

Accessories and Optional Equipment
Accessory Delay Module
Accessory Delay Relay
Component Information
Locations
