Voyager V6-3.3L VIN 3 Flex Fuel (2003)

Page 1
background image

Transmission Control System Relay: Diagrams

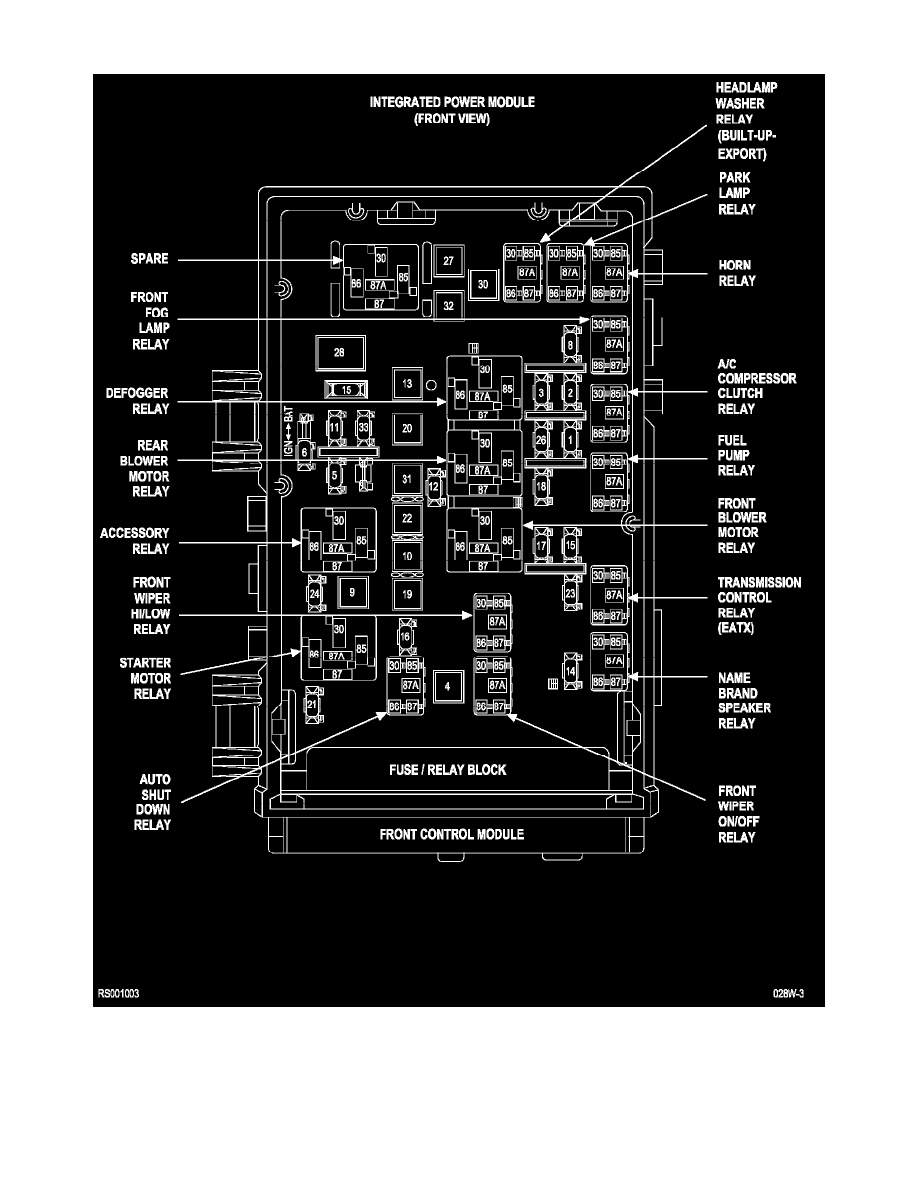

Integrated Power Module (Front View)
