2500 4x2 Pickup V10-488 8.0L Magnum (1996)
Cigarette Lighter: Diagram Information and Instructions
Circuit Function
Circuit Identification

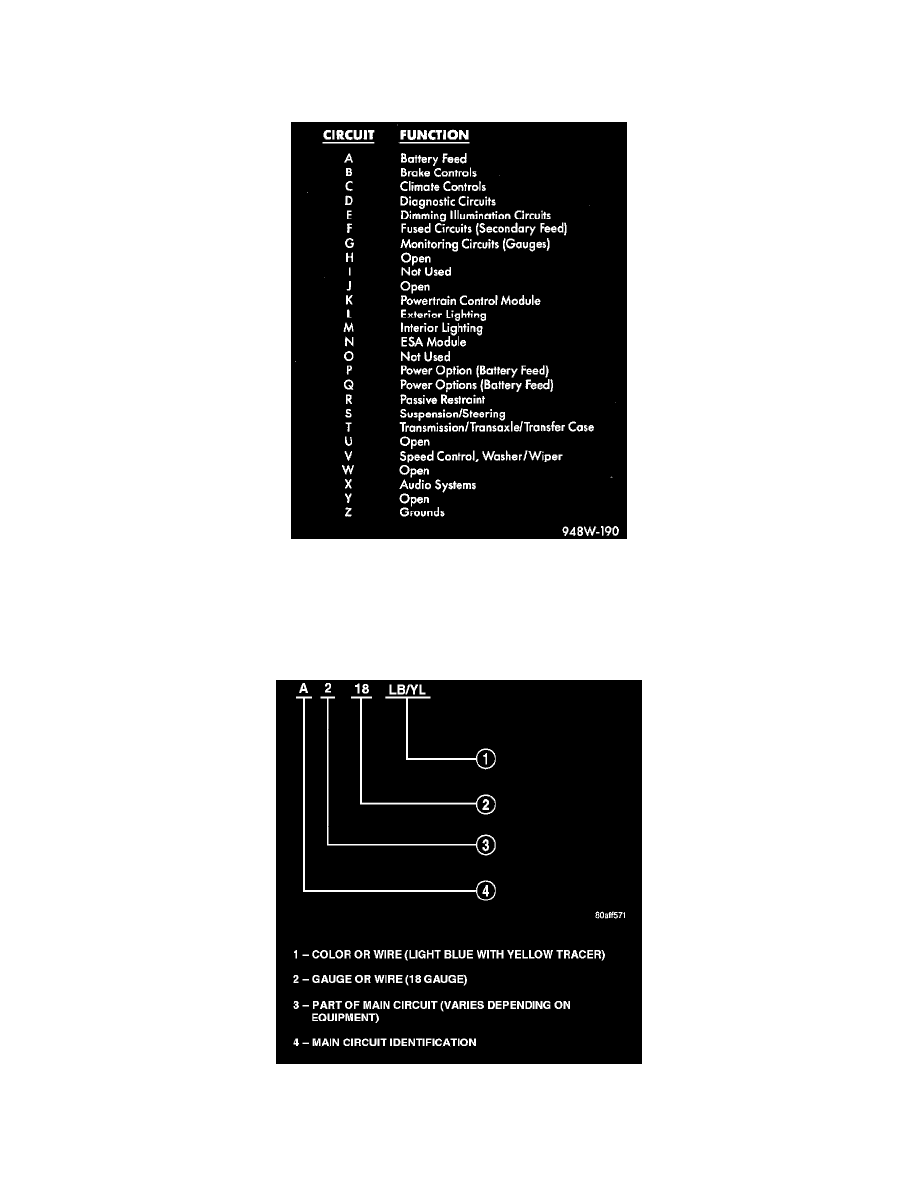

All circuits in the diagrams use an alpha/numeric code to identify the wire and its function. To identify which circuit code applies to a system, refer to the
Circuit Identification Code Chart. This chart shows the main circuits only and does not show the secondary codes that may apply to some models.
Circuit Information
Wire Code Identification
