Aries L4-135 2.2L VIN C 2-bbl (1985)

Page 2
background image

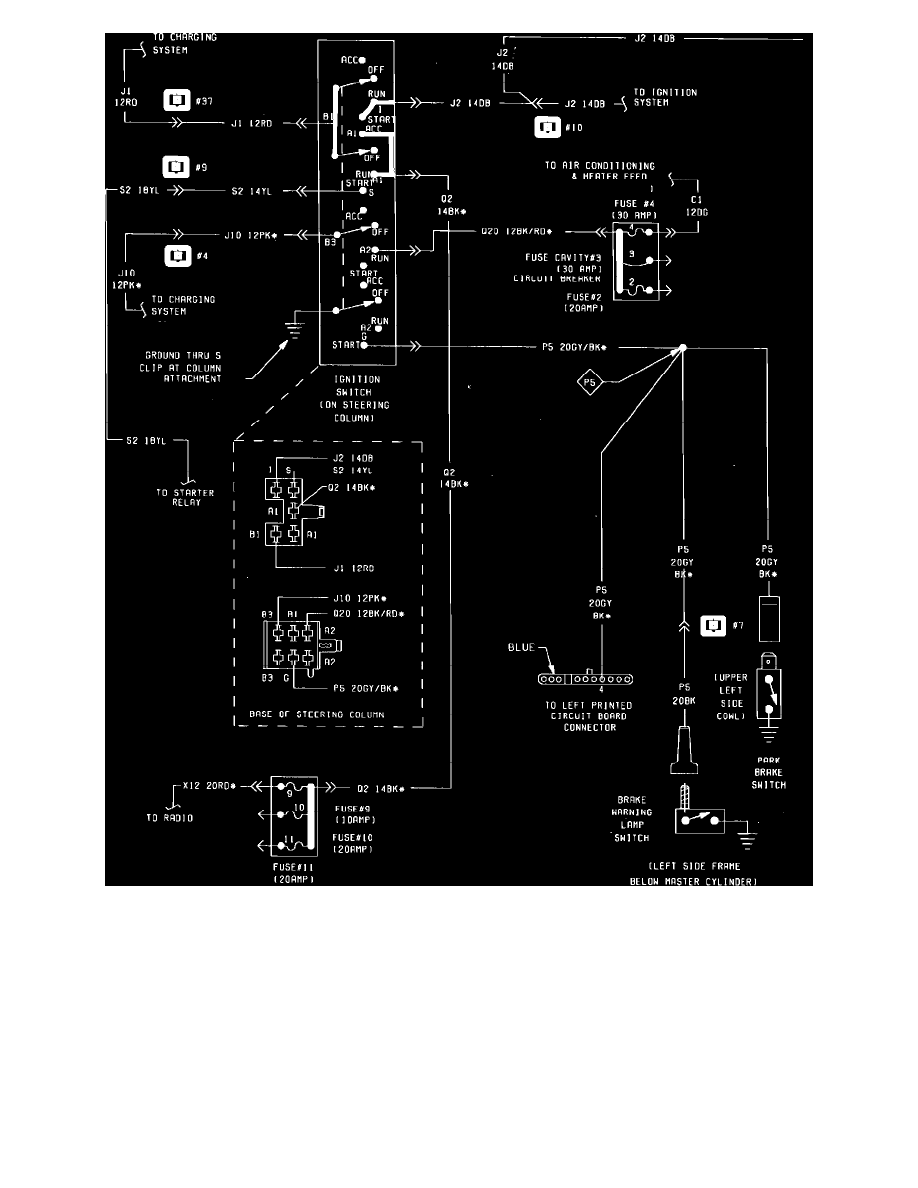

Fig. 32  Ignition Switch & Speed Control Wiring Circuit (Part 1 of 2). 1985
