Wheel Bearing: Service and Repair
Front

REMOVAL

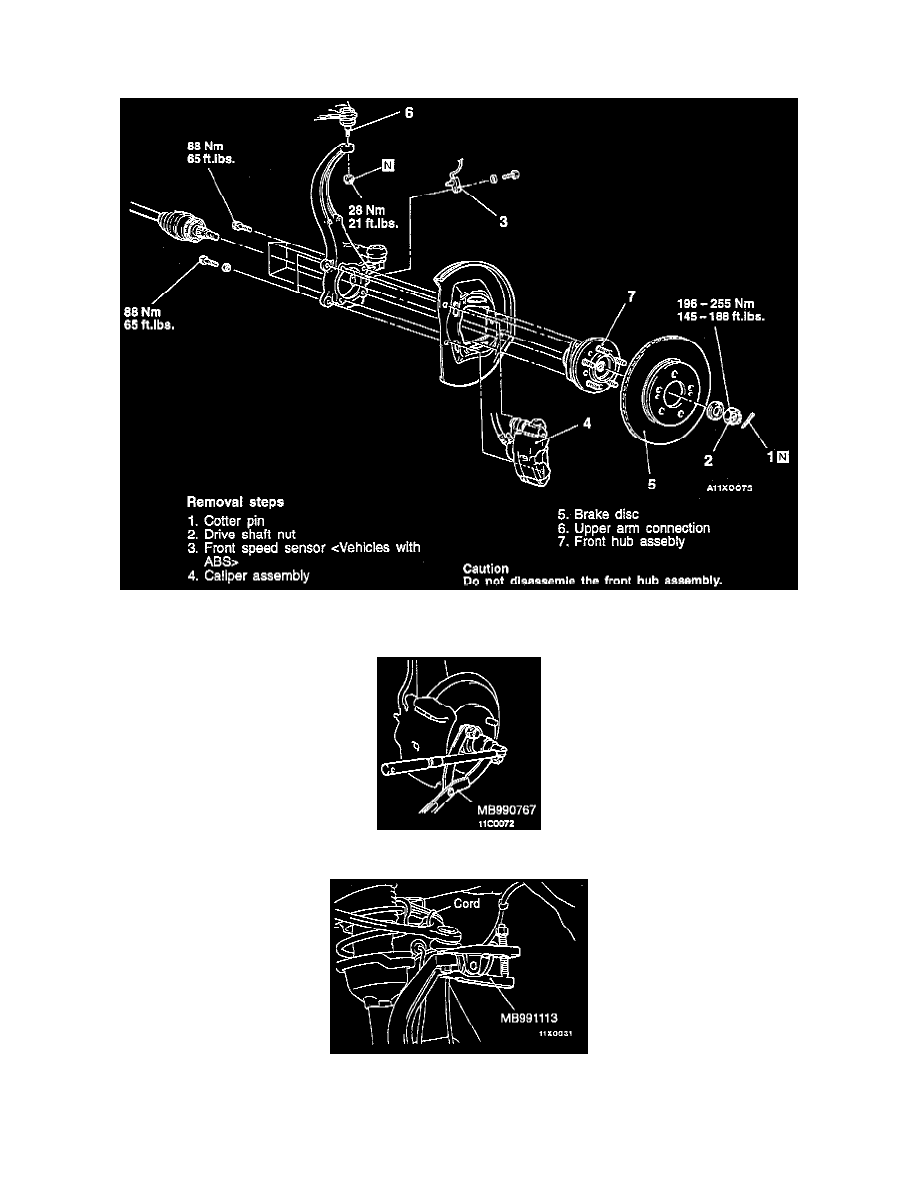

Follow the removal steps outlined in the illustration, noting the following.

1. Secure the removed caliper assembly with wire so that it does not fall.

CAUTION:
-

Be sure to tie the cord of the special tool to a nearby part.

-

Loosen the nut but don't remove it.
