Avenger L4-2.4L (2009)
Alternator: Service and Repair
Generator - Removal
2.0L/2.4L
1. Disconnect and isolate negative battery cable at battery.
2. Remove the right front wheel.

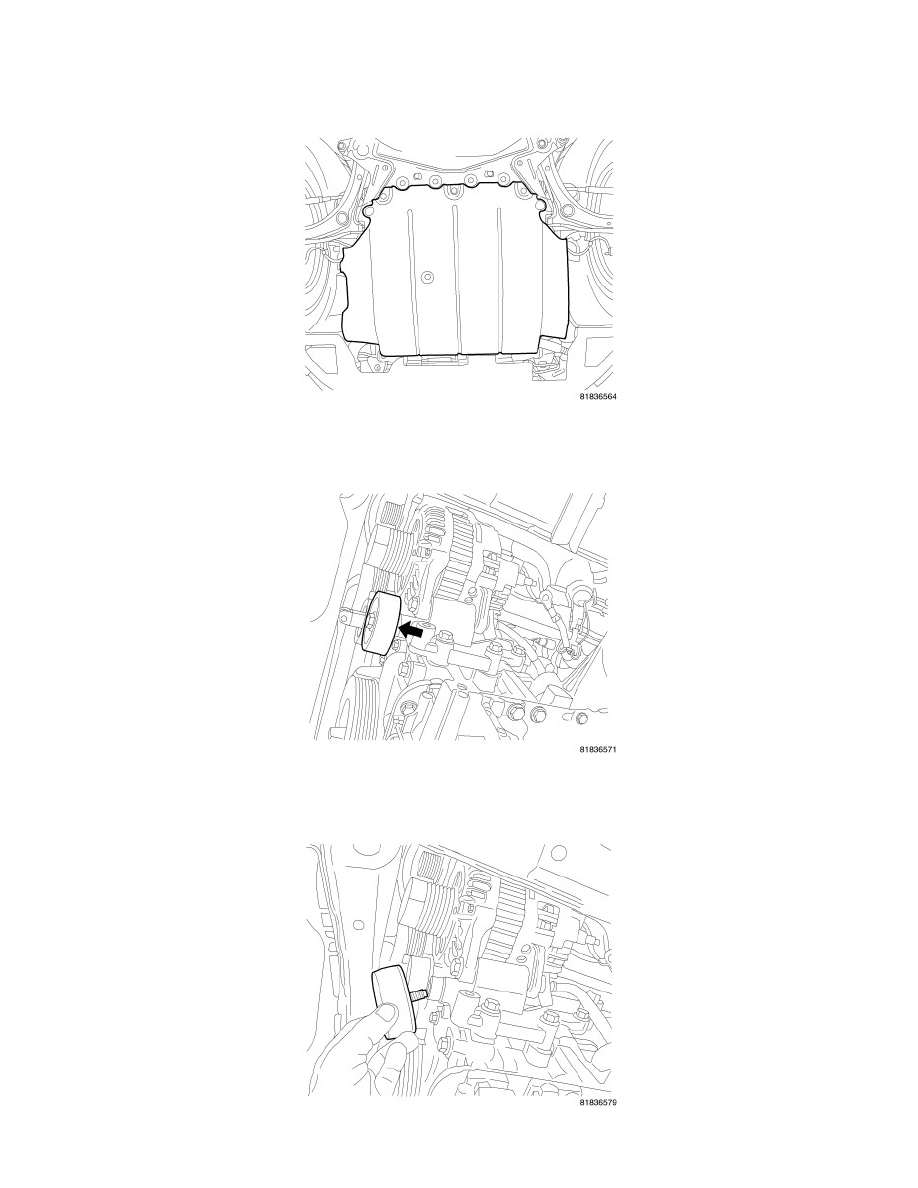

3. Remove the underbody air dam.
4. Remove the accessory drive splash shield.
5. Remove the serpentine belt See: Engine, Cooling and Exhaust/Engine/Drive Belts, Mounts, Brackets and Accessories/Drive Belt/Service and
Repair/Removal and Replacement/Serpentine Accessory Drive Belt - Removal.
6. Remove the accessory drive idler pulley.
