B250 3/4 Ton Van L6-225 3.7L (1984)
Door Lock Switch: Service and Repair
Remove the battery negative cable. Remove door trim and panel(s)

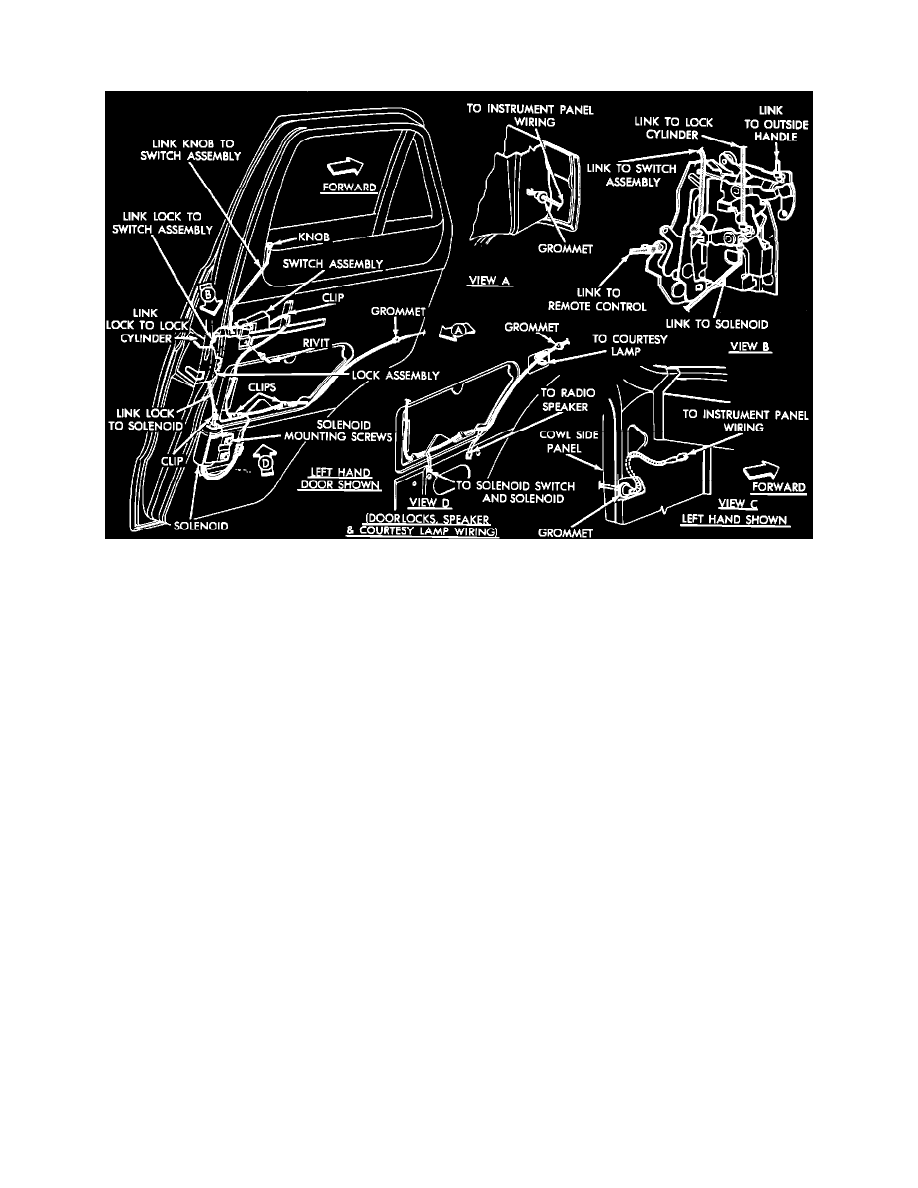

Front Door Wiring Harness And Components
Disconnect wire plug from door switch. Disconnect lock knob rod retaining clip and remove lock knob rod from door switch. Disconnect retaining clip
on link between latch assembly and door switch. Center punch door switch mounting rivet and drill out rivet head. Install new door switch using either a
new rivet or a matching nut, bolt, and washer assembly. Install link between latch assembly and door switch. Install lock knob rod to door switch.
Connect wire plug to door switch. Install battery negative cable and test power door lock system. Install door trim panel(s).
