Caliber L4-1.8L (2009)
Fluid - M/T: Service and Repair
FLUID DRAIN AND FILL
NOTE: All T355 Manual Transaxles require the use of ATF+4 (Automatic Transmission Fluid).

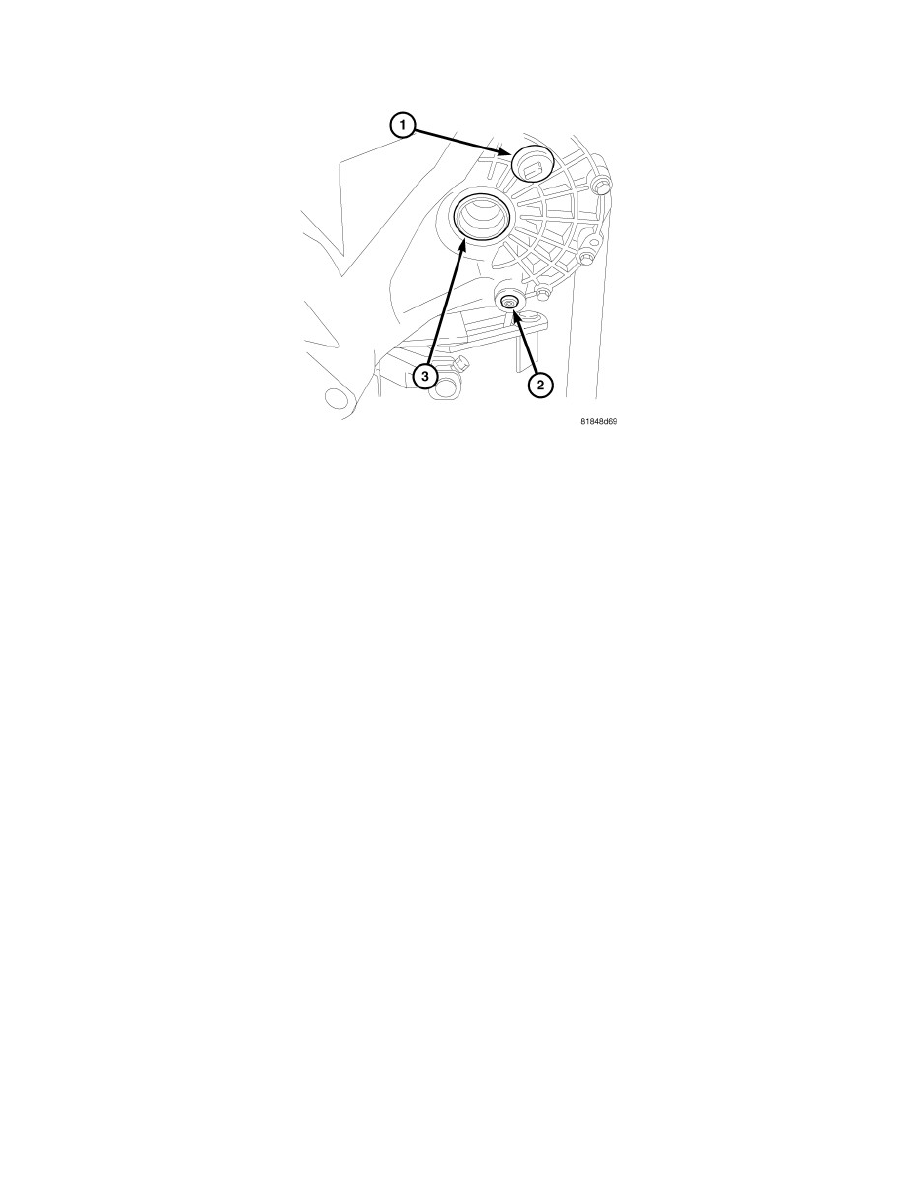

The transaxle fill plug (1) is located on the left side of the transaxle differential area. The fluid level should be within 3/16 inch from the bottom of the
transaxle fill hole (vehicle must be level when checking).
The transaxle drain plug (2) is located on the lower right side of the transaxle differential housing. Tighten drain plug to 14 Nm (120 in. lbs.).
