Caliber L4-1.8L (2009)
Auxiliary Power Outlet: Service and Repair

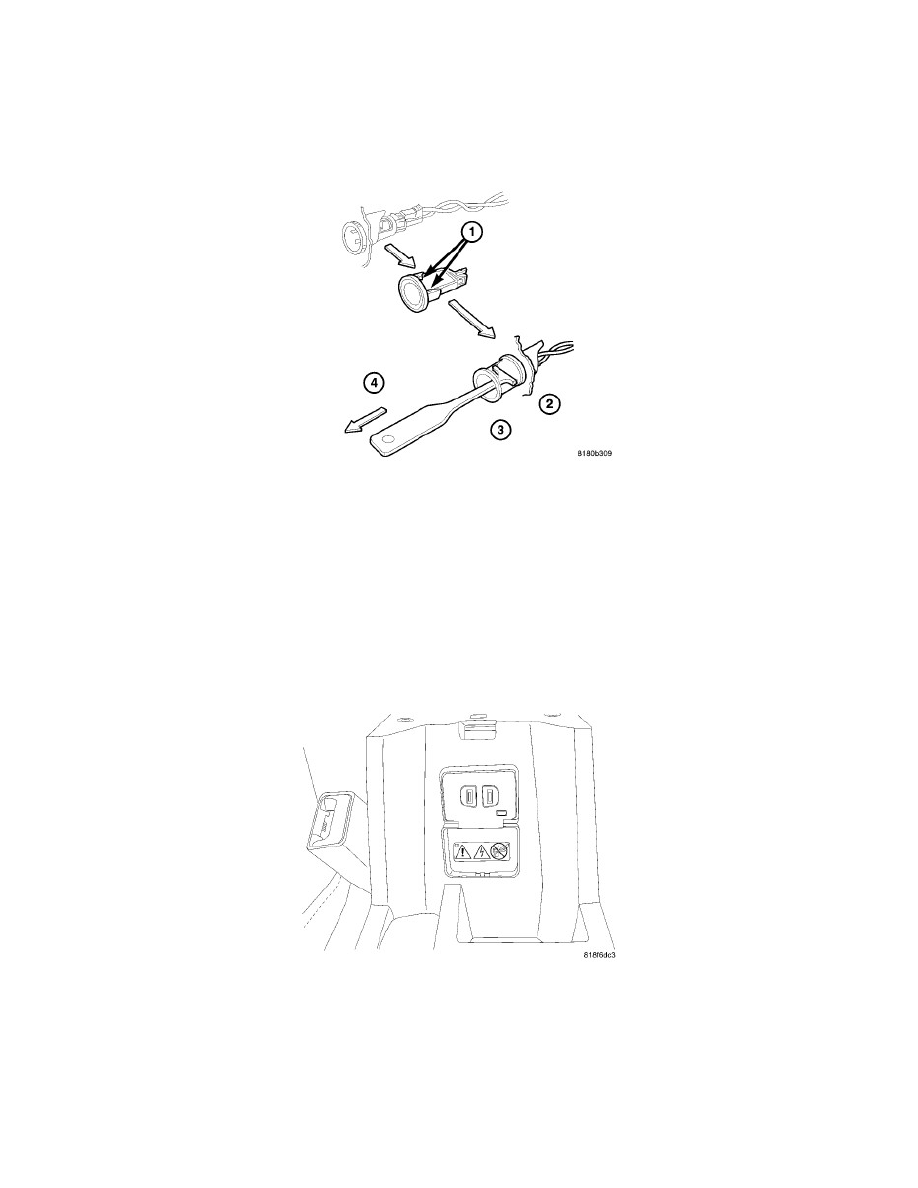

Power Outlet - Removal
Power Outlet
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Look inside and note position of the retaining bosses (1).
3. Using special tool 9857 Power Outlet Remover. Insert the tool forcing the bosses out of base.
4. Pull out the base through mounting ring by gently rocking the tool (3).
5. Disconnect the base wires.
6. Set base aside and remove base mount ring.
AC Power Outlet
REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Remove the center console. See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair/Center Console - Removal.
3. Disconnect electrical connector.
4. Remove AC power outlet.
