Caliber L4-1.8L (2009)
Power Distribution Module: Diagrams

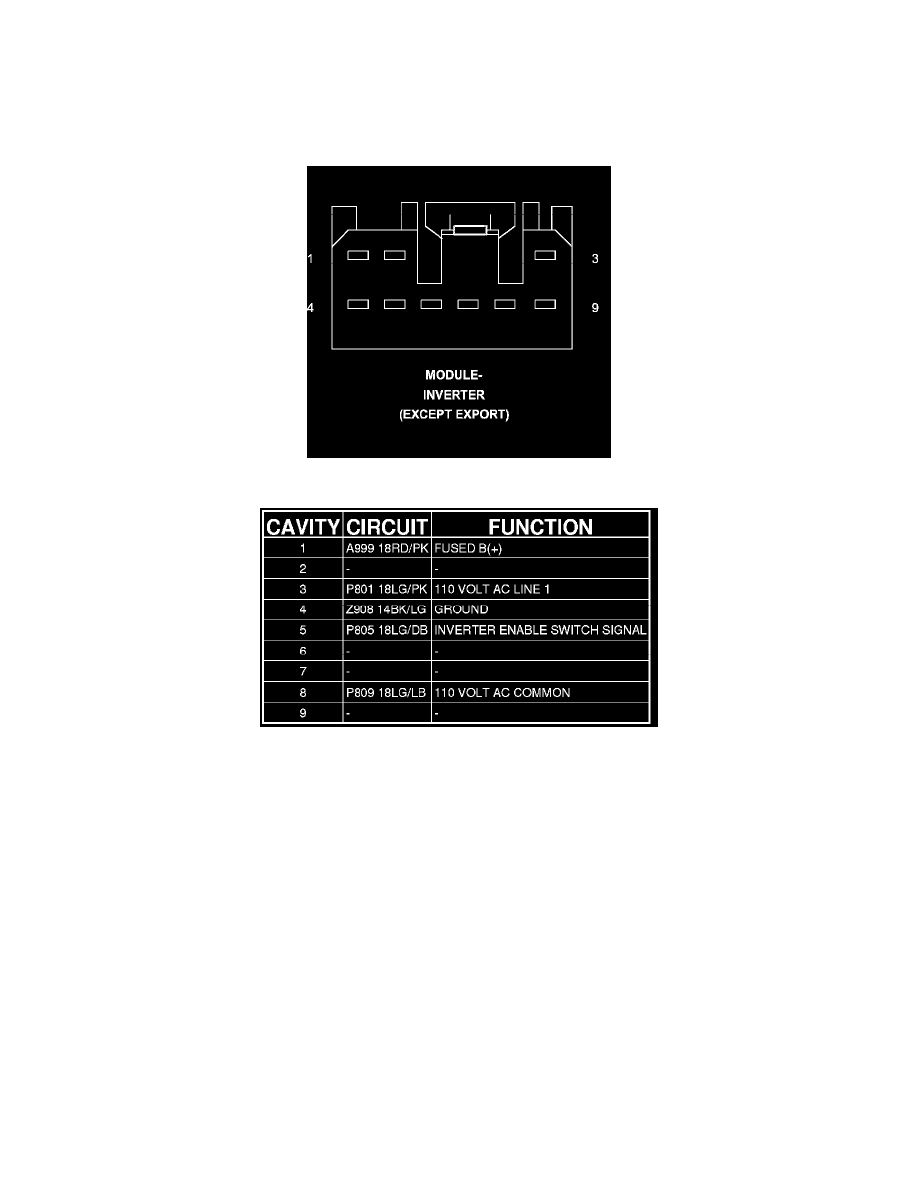

Inverter Module (Instrument Panel) 9 Way
Connector (EXCEPT EXPORT) - (INSTRUMENT PANEL) 9 WAY
MODULE-INVERTER (EXCEPT EXPORT) - (INSTRUMENT PANEL) 9 WAY
Dodge Workshop Service and Repair Manuals
Inverter Module (Instrument Panel) 9 Way|Page 4617 >
< Totally Integrated Power Module C1|Page 4614
Page 1
