Caliber L4-1.8L (2009)
Flywheel: Service and Repair
Removal
REMOVAL
WARNING: Chrysler does not manufacture any vehicles or replacement parts that contain asbestos. Aftermarket products may or may not
contain asbestos. Refer to aftermarket product packaging for product information. Whether the product contains asbestos or not,
dust and dirt can accumulate on manual clutch parts during normal use. Follow practices prescribed by appropriate regulations
for the handling, processing and disposing of dust and debris
1. Remove transaxle See: Manual Transmission/Transaxle/Service and Repair/Removal and Replacement/T355 Manual Transmission - Removal.
2. Remove clutch pressure plate and disc See: Clutch/Clutch Disc/Service and Repair/Removal and Replacement/Clutch Disc - Removal.

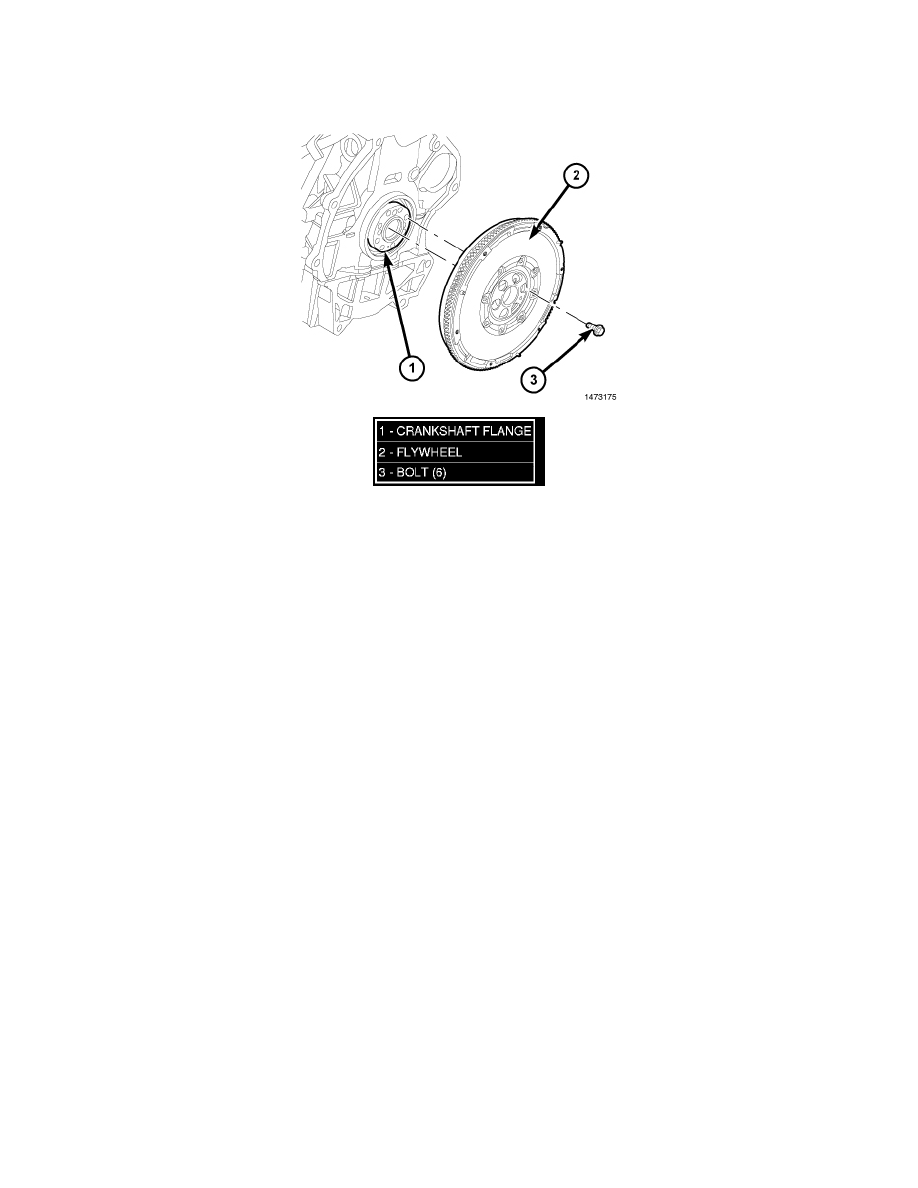

3. Remove the six flywheel-to-crankshaft bolts (3) and remove flywheel assembly (2).
