Caliber L4-2.0L (2008)
Vehicle Lifting: Service and Repair

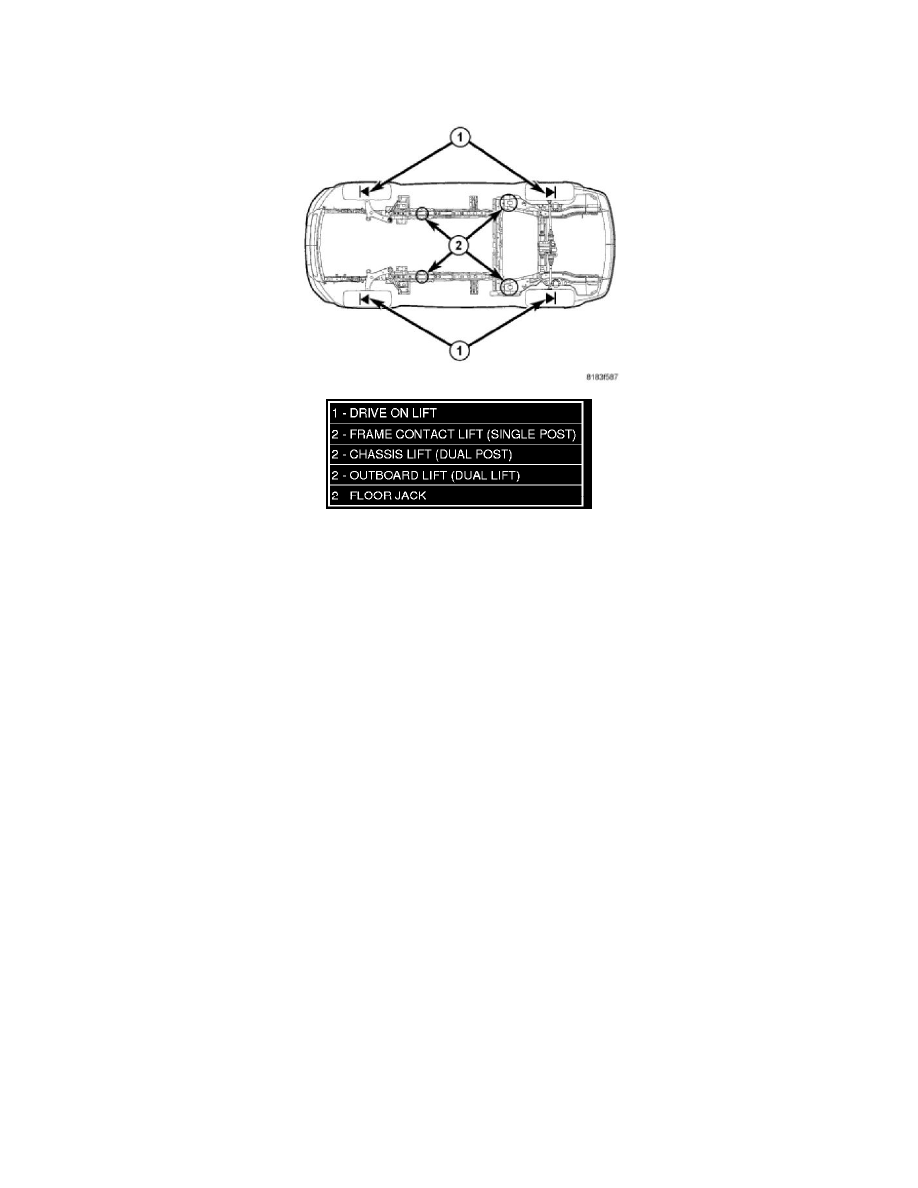

STANDARD PROCEDURE - HOISTING
WARNING: The hoisting and jack lifting points provided are for a complete vehicle. When the engine or rear suspension is removed from a
vehicle, the center of gravity is altered making some hoisting conditions unstable. Properly support or secure vehicle to hoisting device when
these conditions exist.
CAUTION: Do not position hoisting device on suspension components, damage to vehicle can result.Do not attempt to raise one entire side of
the vehicle by placing a floor jack midway between the front and rear wheels. This practice may result in permanent damage to the body.
When properly positioned, a floor jack can be used to lift the vehicle and support the raised vehicle with jack stands.
A floor jack or any lifting device, must never be used on any part of the underbody other then the described areas.
SRT 4
CAUTION: When lifting a Caliber SRT 4 vehicle on a hoist it may be necessary to use 55 mm lift arm spacers to clear the SRT 4 ground effect
components. Failure to lift the SRT 4 correctly may result in ground effect component damage.
