Caliber L4-2.0L VIN B (2007)

Page 1
background image

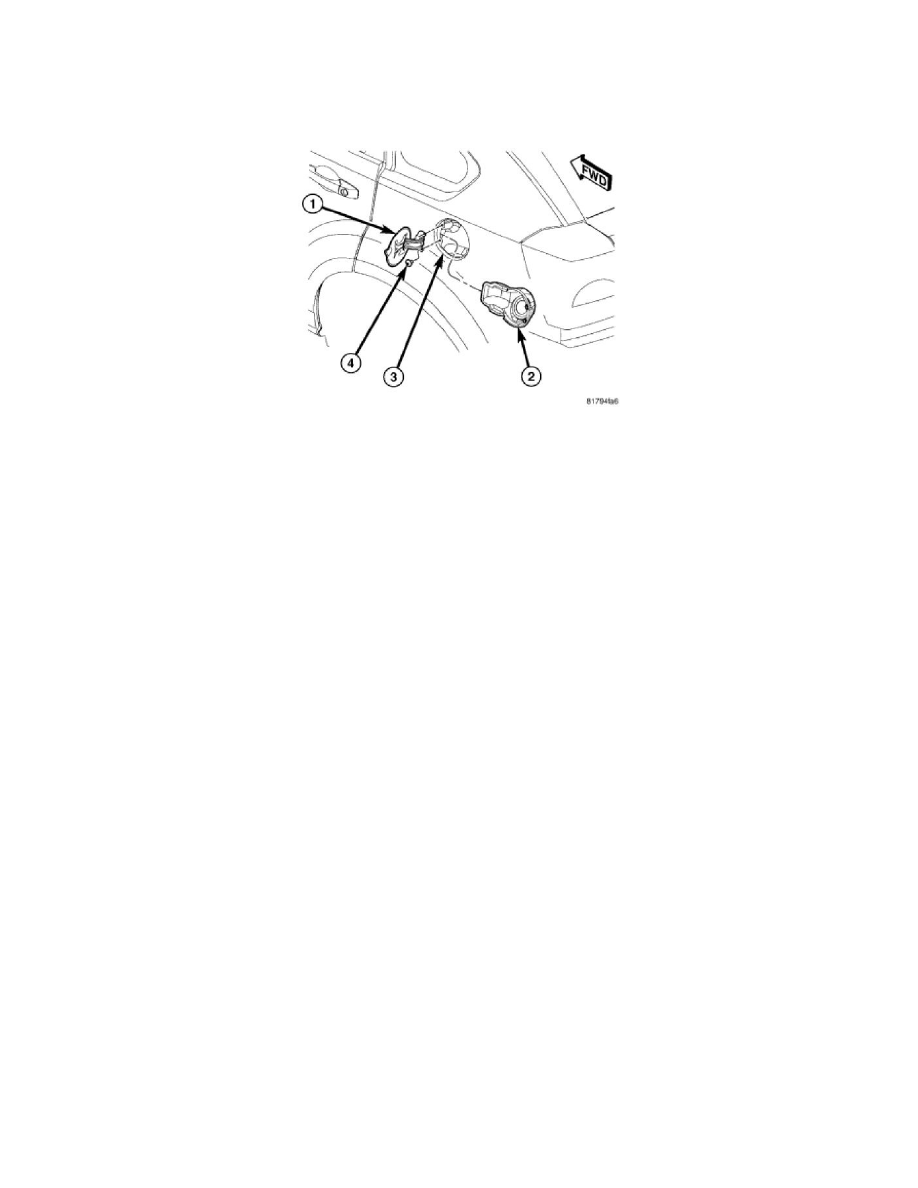

Fuel Door: Service and Repair
Removal

REMOVAL

1. Remove fuel filler door fasteners (4).

2. Remove fuel filler door.

3. Remove fuel filler housing screws.

4. Remove fuel filler housing.
