Caliber L4-2.0L VIN B (2007)
Power Door Lock Switch: Testing and Inspection
DOOR LOCK SWITCH
1. Remove the switch.

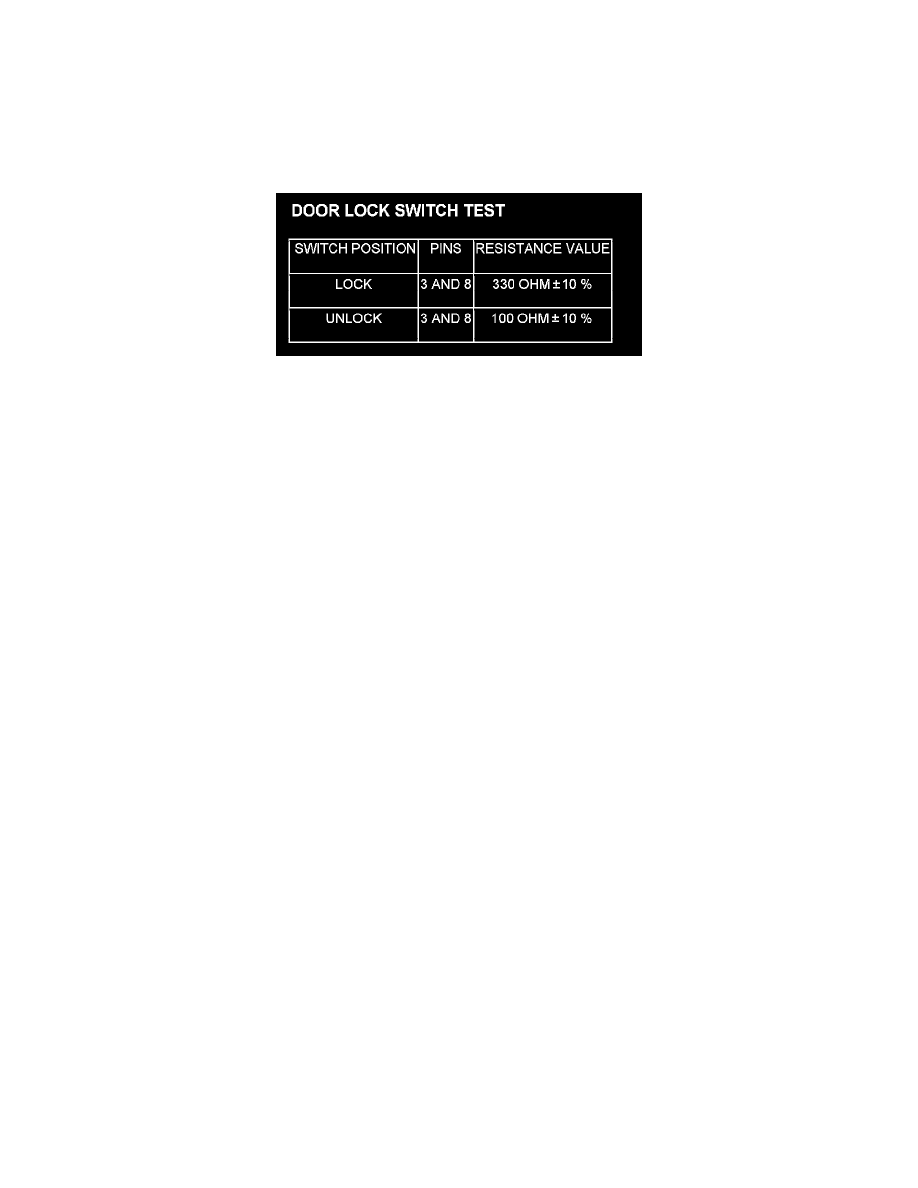

2. Using an ohmmeter, refer to Door Lock Switch Test table to determine if switch resistance is correct in the Lock and Unlock switch positions.
Refer to Wiring Diagrams for harness connector pin-outs.
