Caliber L4-2.0L VIN B (2007)
Liftgate Window Glass: Service and Repair
Liftgate
Removal
1. Open liftgate.
2. Disconnect washer hose.

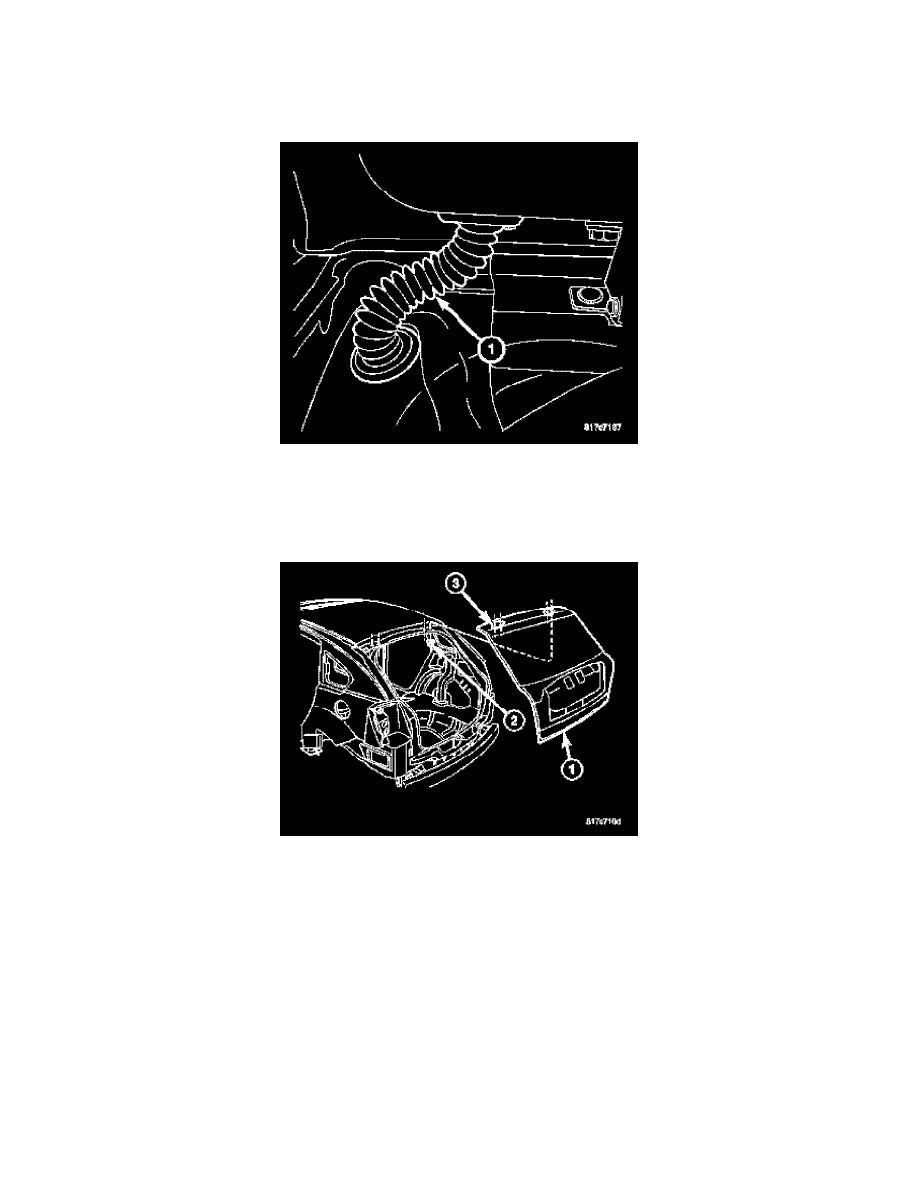

3. Disconnect liftgate harness (1).
4. Disconnect cable from handle.
5. With the help from an assistant, support liftgate and disconnect Prop rods.
6. Remove fasteners (2) attaching liftgate (1) to liftgate hinge (3).
Installation
