Caliber L4-2.4L (2009)

Page 1
background image

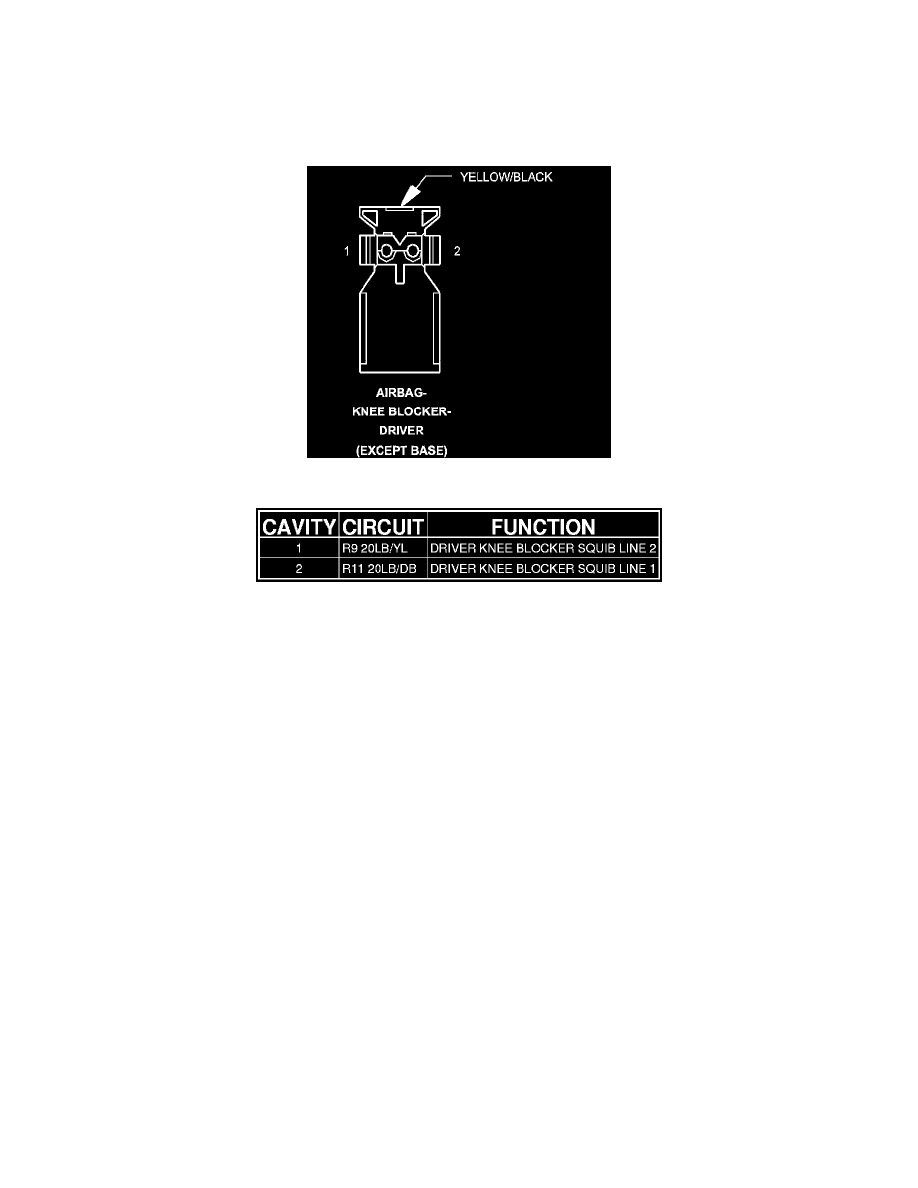

Air Bag: Diagrams
Driver Knee Blocker Airbag (Except Base) (Instrument Panel) 2 Way

Connector (EXCEPT BASE) - (INSTRUMENT PANEL) 2 WAY



 AIRBAG-KNEE BLOCKER-DRIVER (EXCEPT BASE) - (INSTRUMENT PANEL) 2 WAY
