Recall - Sliding Door Key Cylinder Link Replacement for Door Lock Cylinder
4.

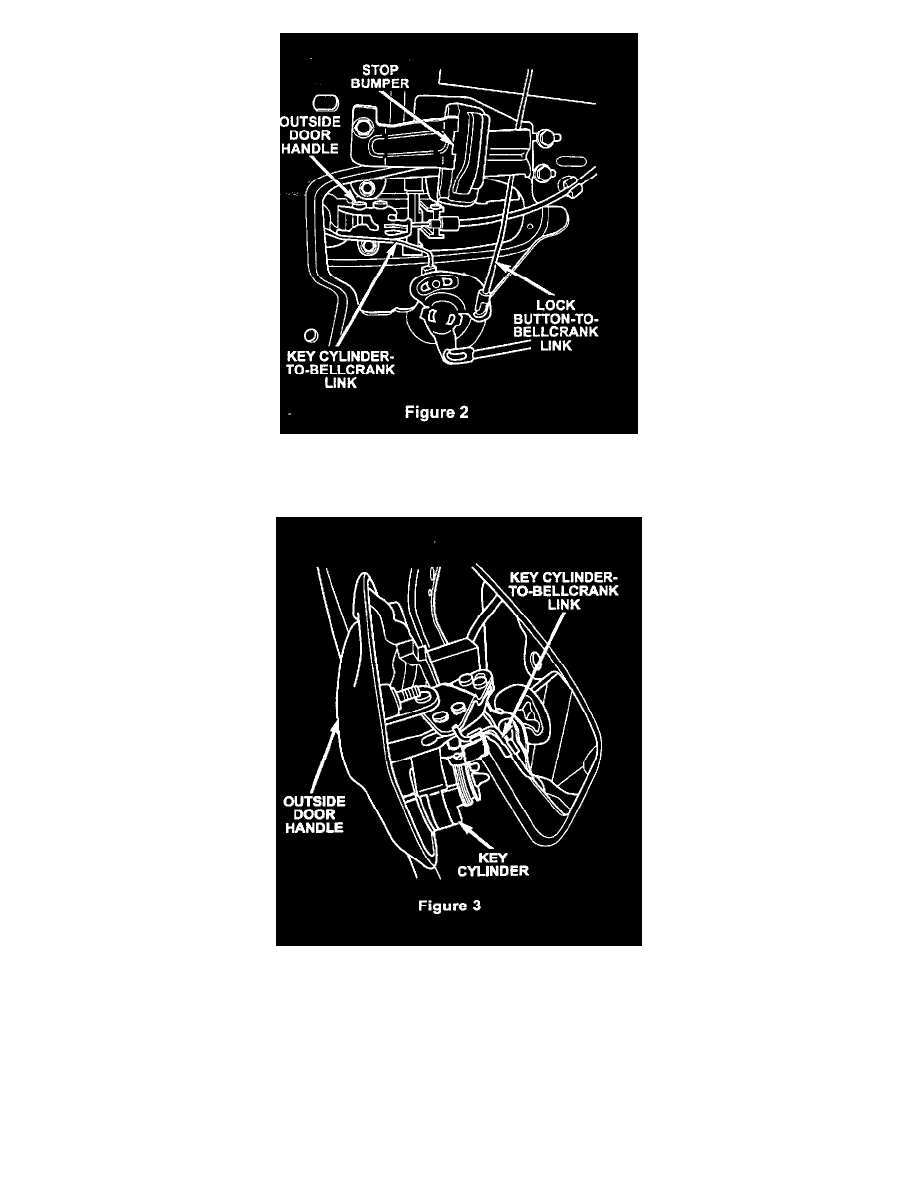

Disconnect the key-cylinder-to-bellcrank link from the bellcrank (Figure 2).
5.
Remove the three (3) outside door handle nuts.
6.
Remove the outside door handle from the door and then disconnect the key-cylinder-to-bellcrank link from the key cylinder (Figure 3). Discard the
link.
7.
Connect the new link to the key cylinder (Figure 3).
8.
Install the outside door handle. Tighten the nuts securely.
9.
Connect the key cylinder-to-bellcrank link to the bellcrank (Figure 2).
10.
Place the trim panel in position on the sliding door.
