Idle Speed/Throttle Actuator - Electronic: Locations

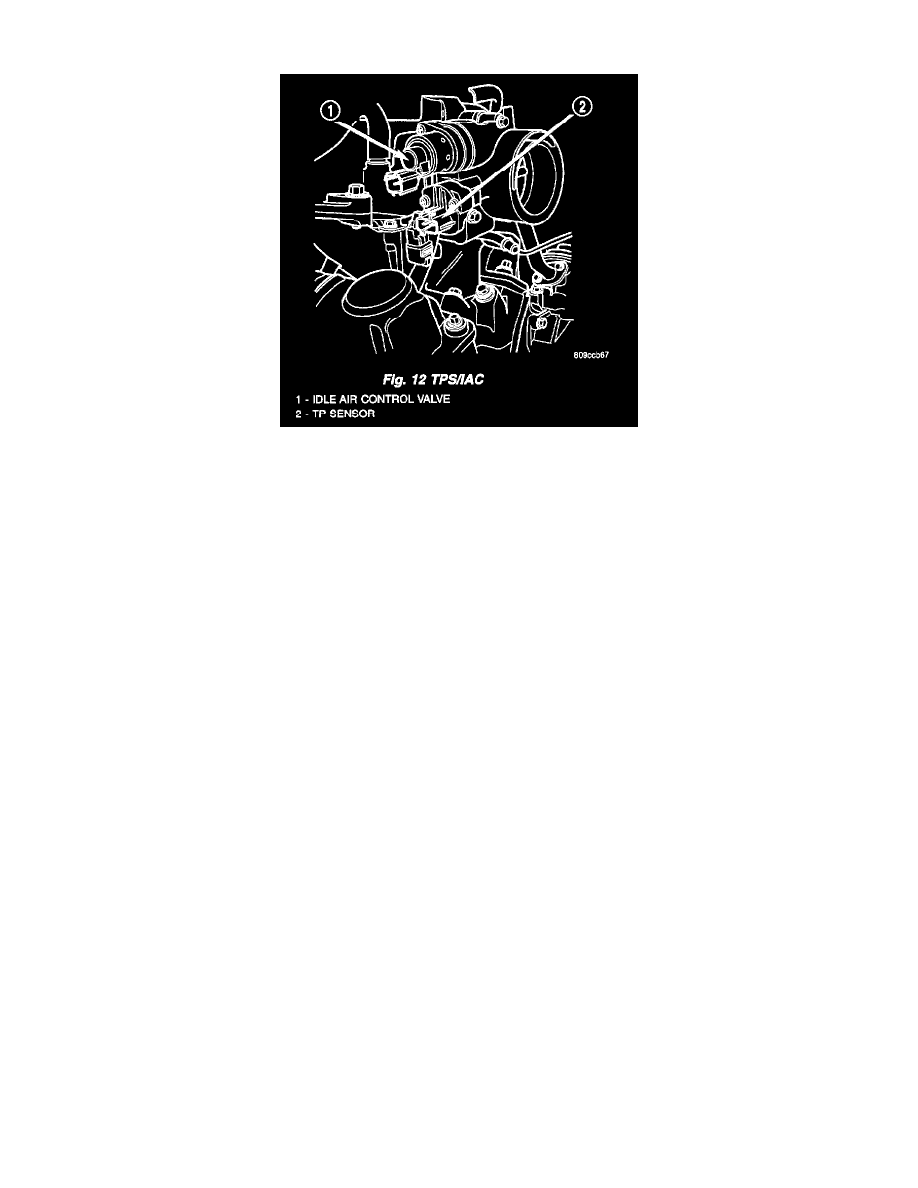

Fig. 12 TPS/IAC

The idle air control motor is mounted on the throttle body.
