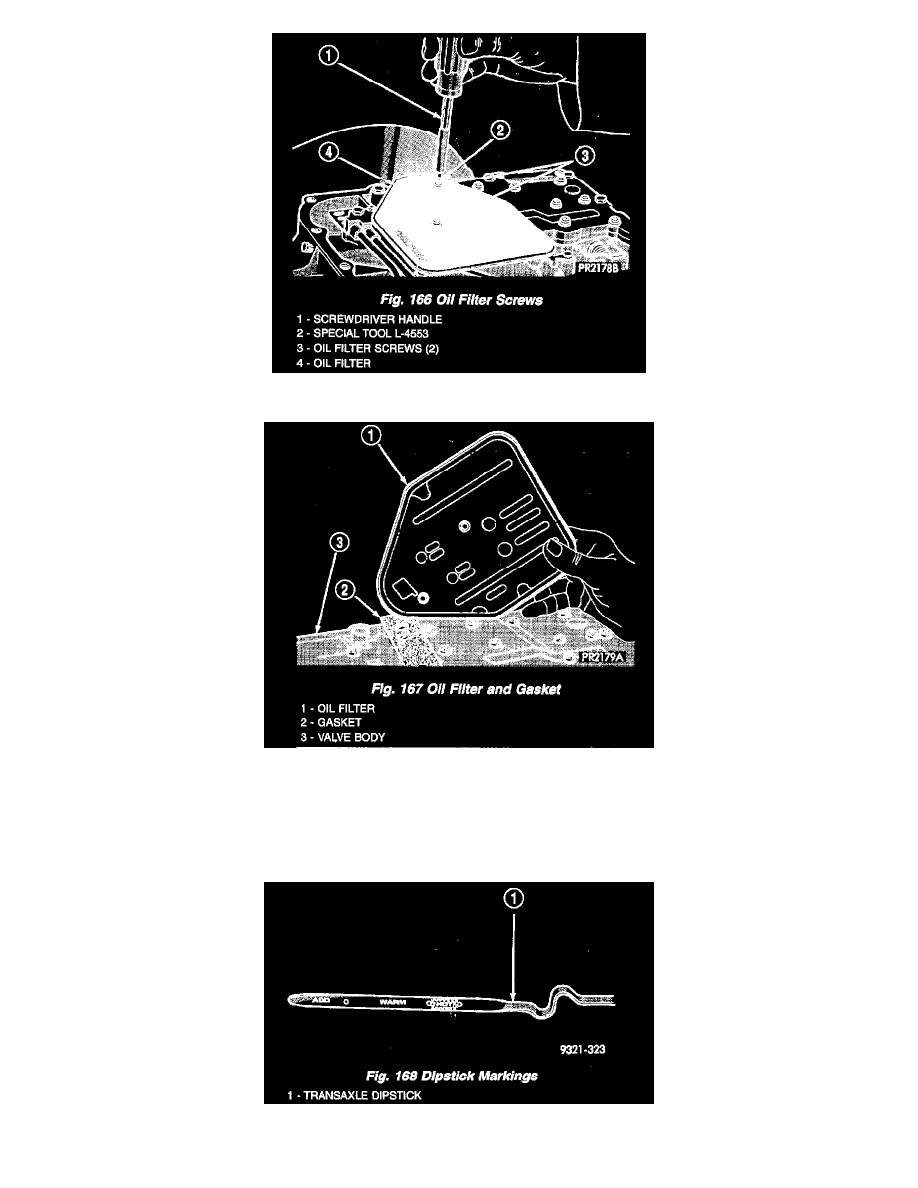

3. Remove oil filter-to-valve body screws (Fig. 166).

4. Remove oil filter and gasket (Fig. 167).
5. Install a new filter and gasket (Fig. 167).
6. Clean the oil pan and magnet. Reinstall pan using new Mopar Silicone Rubber Adhesive Sealant. Torque oil pan bolts to 19 Nm (165 inch lbs.).
7. Pour four quarts of Mopar ATF+4 (Automatic Transmission Fluid-Type 9602) through the dipstick opening.
8. Start engine and allow to idle for at least one minute. Then, with parking and service brakes applied, move selector lever momentarily to each

position, ending in the park or neutral position.

9. Check the transaxle fluid level and add an appropriate amount to bring the transaxle fluid level to 3 mm (1/8 inch) below the "ADD" mark on the
