Challenger V6-3.5L (2009)

Page 1
background image

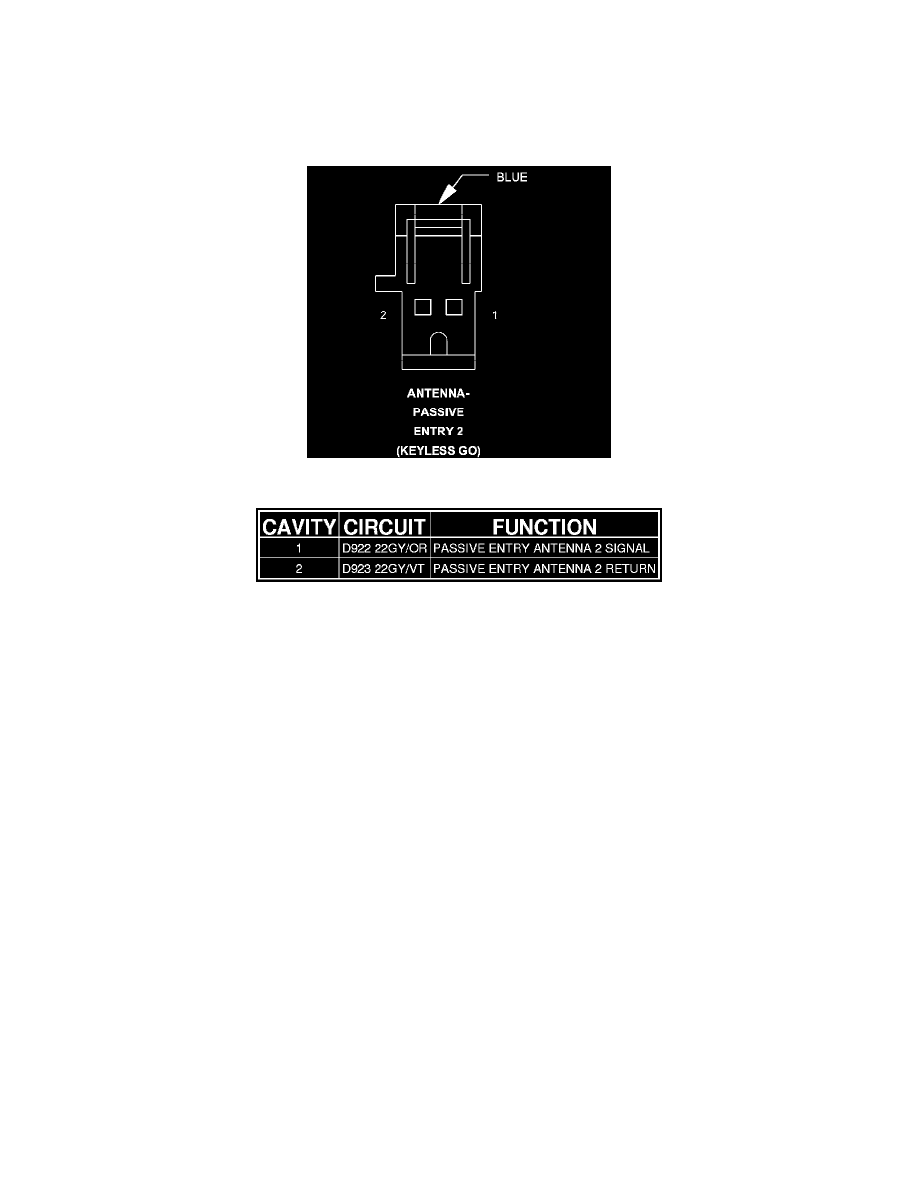

Antenna - Keyless Entry: Diagrams
Passive Entry Antenna 2 (Keyless Go) (Body) 2 Way

Connector (KEYLESS GO) - (BODY) 2 WAY



 ANTENNA-PASSIVE ENTRY 2 (KEYLESS GO) - (BODY) 2 WAY
