Amplifier: Description and Operation
Amplifier - Description

DESCRIPTION

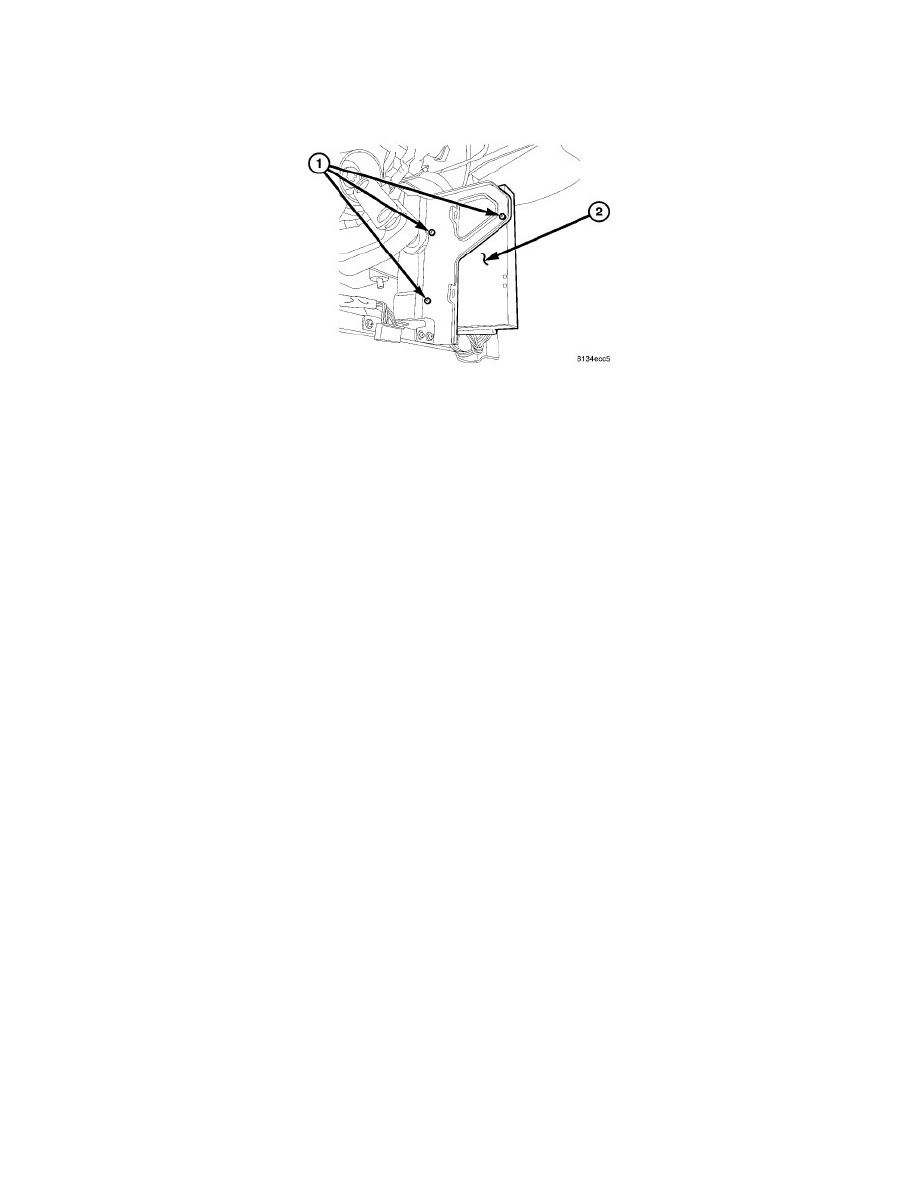

The amplifier (2) is available in three ratings: 276 watt, 322 watt, and 368 watt. The  amplifier is mounted to the left of the steering column under the
instrument panel.
