Challenger V6-3.5L (2009)
Front Door Panel: Service and Repair
Front Door Watershield - Installation
INSTALLATION
CAUTION: Do not allow the watershield or adhesive to become contaminated with dirt or other foreign substances.
Do not damage the watershield during removal and installation.
If the watershield becomes contaminated or damaged, replace the watershield.

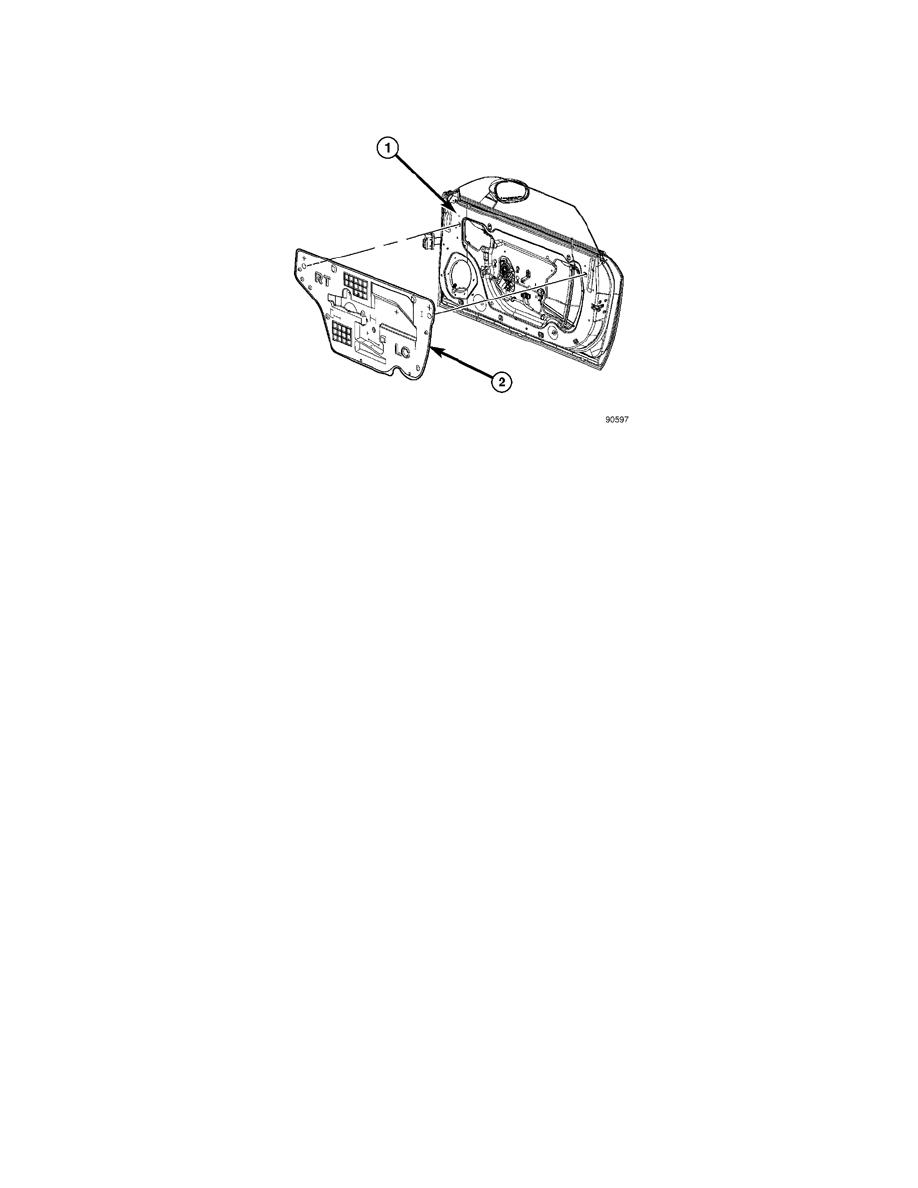

1. Install the water shield (2) to the door (1).
2. Apply firm and even pressure to the adhesive bead along the remaining edges of the watershield to seal it to the inside of the door. Be certain that
the watershield is sealed to the inside of the door.
3. Install the door trim panel. See: Front Door Trim Panel - Installation.
