Challenger V6-3.5L (2009)

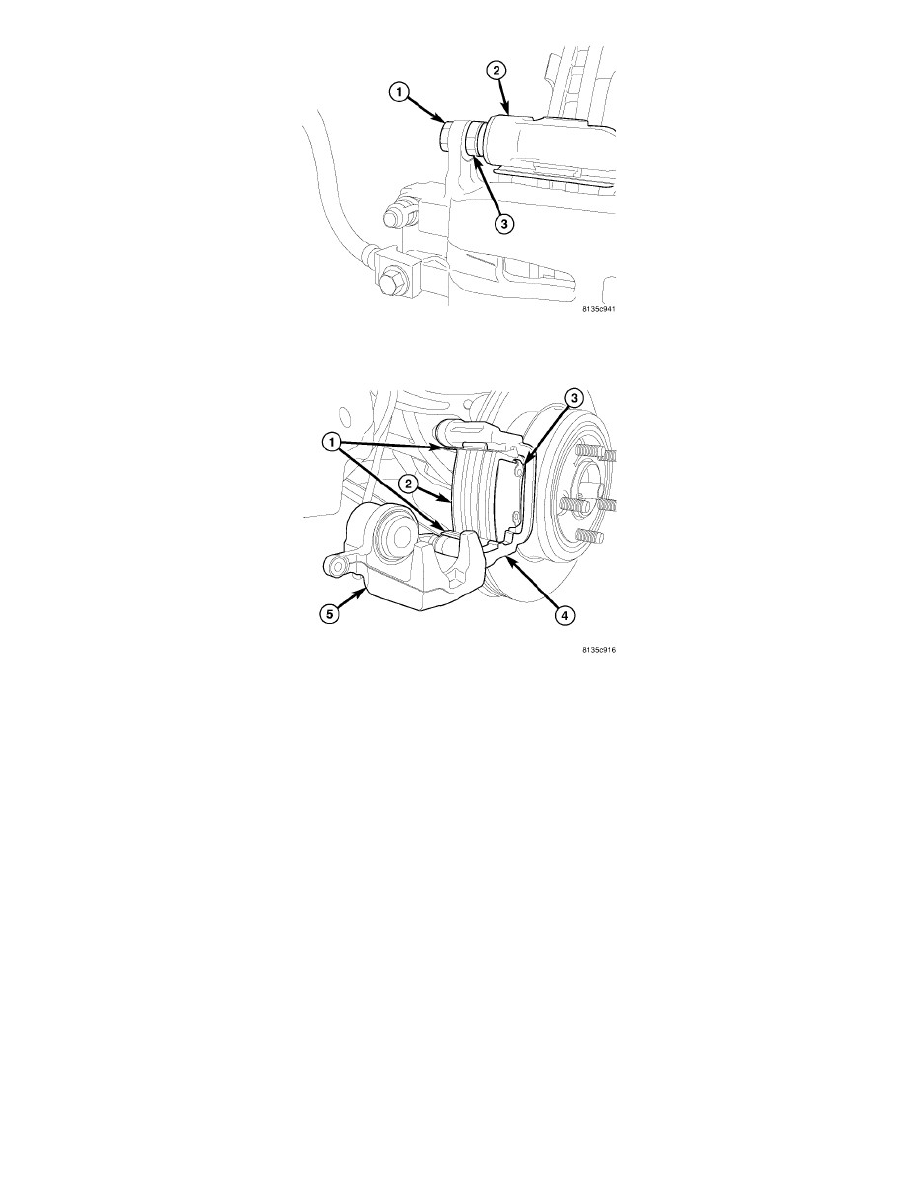

3. Remove Upper caliper guide pin bolt (1). To do so, hold the guide pin (3) stationary while turning bolt.
4. Rotate caliper downward (5), exposing brake pads (2 and 3). Use care not to overextend brake hose when doing this or damage may occur.
5. Remove inboard (2) and outboard (3) brake pads from caliper adapter (4).
6. If necessary, remove anti-rattle clips (1) from upper and lower abutments of adapter (4).
Front
FRONT (EXCEPT SRT8)
NOTE: Perform steps 1 through 7 on each side of the vehicle.
1. Completely retract caliper piston(s) back into bore(s) of caliper. To do so:
a. Remove fluid reservoir cap.
b. Use hand pressure or a C-clamp may be used to retract piston, first placing a wood block over piston(s) before installing C-clamp to avoid
damaging piston(s).
c. Install fluid reservoir cap.
