Challenger V6-3.5L (2009)
Harmonic Balancer - Crankshaft Pulley: Service and Repair
Vibration Damper - Removal
REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Partially drain the cooling system See: Cooling System/Service and Repair.

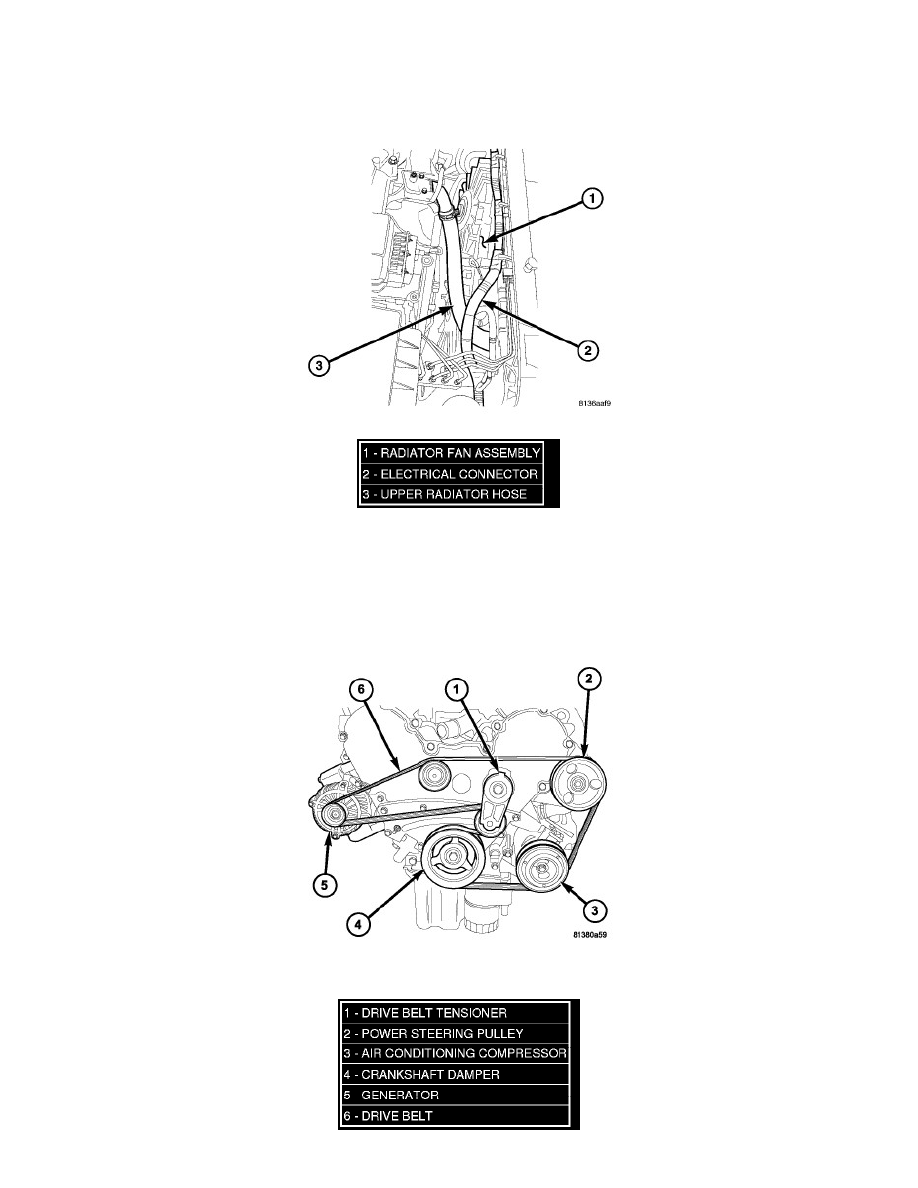

3. Remove the upper radiator hose (3).
4. Disconnect the cooling fan electrical connector (2).
5. Remove the cooling fan mounting bolts.
6. Remove the radiator cooling fan assembly (1) from the vehicle.
