Challenger V6-3.5L (2009)

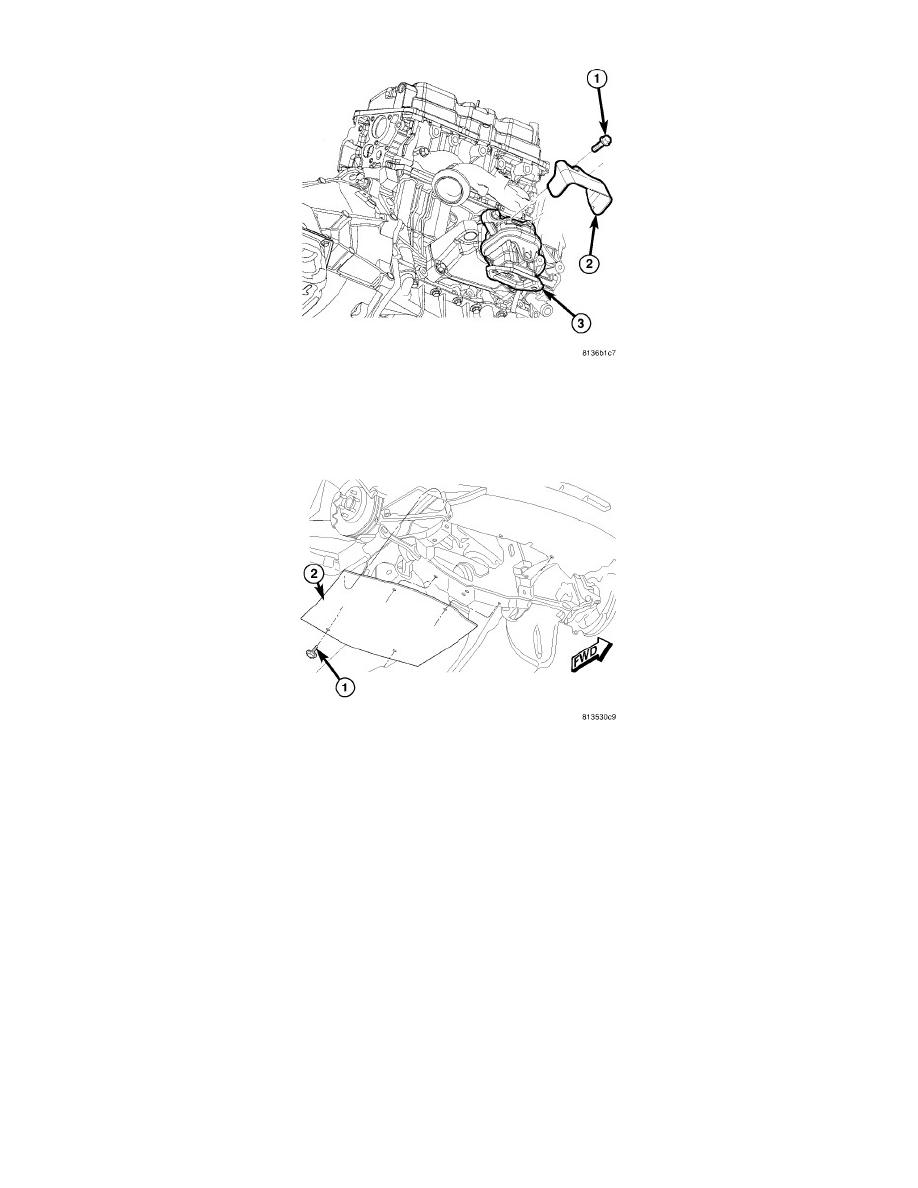

6. Install the engine mount heat shield (2) and bolts (1). Tighten bolts to 11 Nm (97 in. lbs.).
7. Install the right engine mount to cradle nuts and tighten to 75 Nm (55 ft. lbs.).
8. Position the rear belly pan (2) to the underside of the vehicle.
9. Install the fasteners (1) that secure the rear belly pan to the underside of the vehicle.
10. Lower the vehicle.
11. Connect the negative battery cable.
